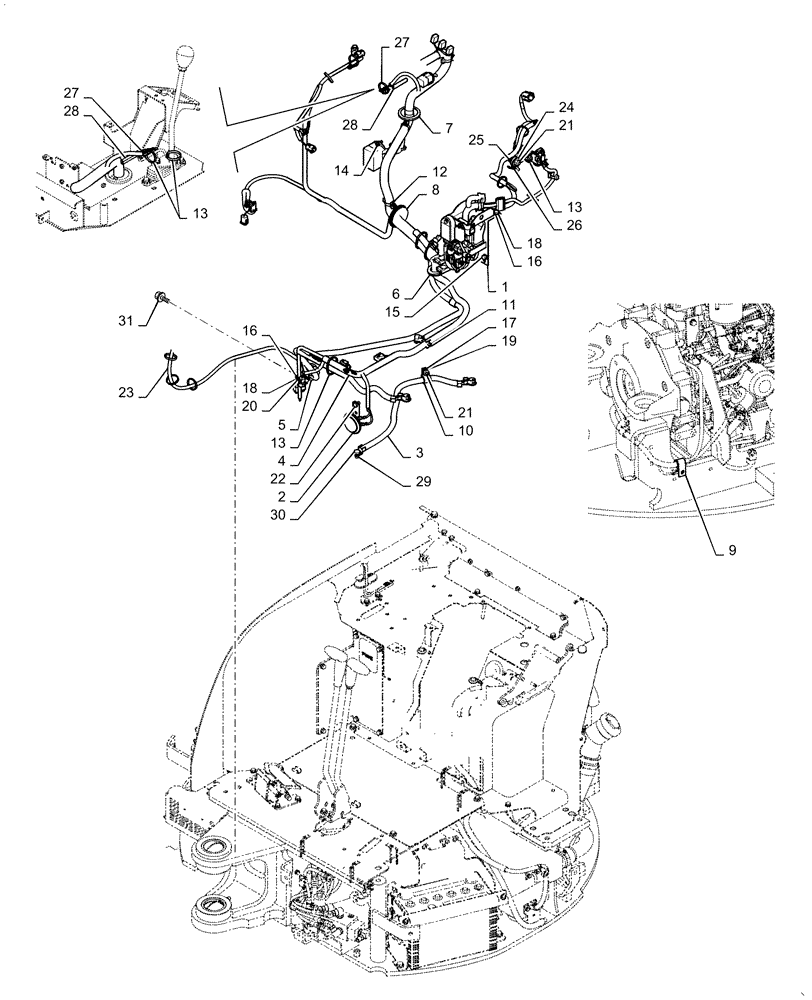

Запчасти Case CX36B (01-098[01]) - ELEC ASSY, UPPER (ANGLE DOZER) (55) - ELECTRICAL SYSTEMS

.

Electric Assy, Upper, Angle Dozer, PW03E00011F1

1шт.

1

PW24E00043F2

RELAY

Assy

1шт.

2

PY53S00002P1

HORN

1шт.

3

PW13E01091P1

NEG BATTERY CABLE

1шт.

4

PW13E01090P1

POS BATTERY CABLE

1шт.

5

PW13E01042P1

GROMMET

1шт.

6

PH13E01072P1

GROMMET

1шт.

7

PW13E01076P1

GROMMET

1шт.

8

PW13E01060P1

GROMMET

1шт.

9

EW02E01015D6

CLIP

1шт.

10

EW02E01015D8

CLIP

2шт.

11

YN03E01001D4

CLIP,33mm L

2шт.

12

YN03E01001D5

CLIP

5шт.

13

PY01P01043D5

CABLE TIE,301mm L

31шт.

14

ZM61C06020

BOLT

Sems

2шт.

15

ZS18C08014

SCREW,Hex, M8 x 14mm

Cap

3шт.

16

ZW16P08000

WASHER

, Serial Range: PX15-21105-PX15-21961

5шт.

16

ZW16P08000

WASHER

, Start Serial: PX15-21962

4шт.

17

ZW16P10000

WASHER

2шт.

18

ZW26X08000

LOCK WASHER

, Serial Range: PX15-21105-PX15-21961

5шт.

18

ZW26X08000

LOCK WASHER

, Start Serial: PX15-21962

4шт.

19

ZW26X10000

LOCK WASHER

2шт.

20

ZN18C08007

NUT

, Serial Range: PX15-21105-PX15-21961

2шт.

20

ZN18C08007

NUT

, Start Serial: PX15-21962

1шт.

21

ZN18C10008

NUT

3шт.

22

ZM11C08016

BOLT

Sems

1шт.

23

PW14E01038D1

HARNESS

1шт.

Angle Dozer

1шт.

24

2418T12346

WASHER

2шт.

25

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

1шт.

26

EW02E01015D4

CLIP

1шт.

27

YN13E01375P1

CLIP,M8 x 8.20mm Shank

2шт.

28

PM22C01020DA

SOFT TRIM

1шт.

29

ZM73C10016

BOLT,M10x16mm - Course Thread

Sems, Serial Range: PX15-21105-PX15-21662

2шт.

30

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems, Start Serial: PX15-21663

2шт.

31

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems, Start Serial: PX15-21962

1шт.
