(01-095[02]) - HOSE ASSY, HEATER

Запчасти Case CX36B (01-095[02]) - HOSE ASSY, HEATER (50) - CAB CLIMATE CONTROL

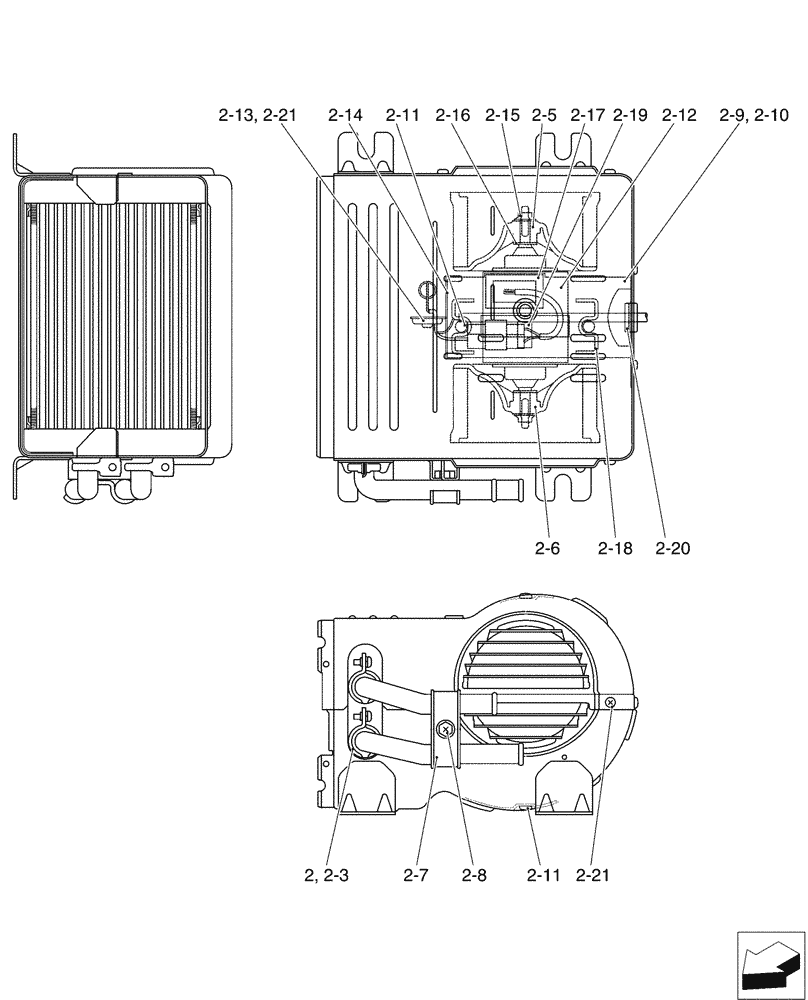

Схема запчастей Case CX36B - (01-095[02]) - HOSE ASSY, HEATER (50) - CAB CLIMATE CONTROL
2-21
2-18
2-11
2-19
2-17
2-5
2-8
2-21
2-16
2-20
2-14
2-11
2-15
2-9
2
2-3
2-7
2-10
2-6
2-13
2-12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

PM21M00005F1

HEATER ASSY.

Components are NSS, Includes Blower Motor

1шт.

2-3

PM21M00005S003

HEATER

1шт.

2-5

2479U293S12

FAN

1шт.

2-6

PM21M00005S006

FAN

1шт.

2-7

2479U293S5

CLAMP

1шт.

2-8

2479U293S6

BOLT

Assy.

1шт.

2-9

PM21M00005S009

HEATER

1шт.

2-10

PM21M00005S010

HEATER

1шт.

2-11

PM21M00005S011

SCREW

Tapping

4шт.

2-12

PM21M00005S012

STARTER MOTOR

Assy., Elec.

1шт.

2-13

PM21M00005S013

RESISTOR

1шт.

2-14

PM21M00005S014

PLATE

1шт.

2-15

24100U1254S25

NUT

2шт.

2-16

24100U1254S26

WASHER

2шт.

2-17

PM21M00005S017

PACKING

2шт.

2-18

PM21M00005S018

PACKING

2шт.

2-19

PM21M00005S019

PACKING

2шт.

2-20

2479U293S15

GROMMET

1шт.

2-21

2479U293S16

SCREW

6шт.
