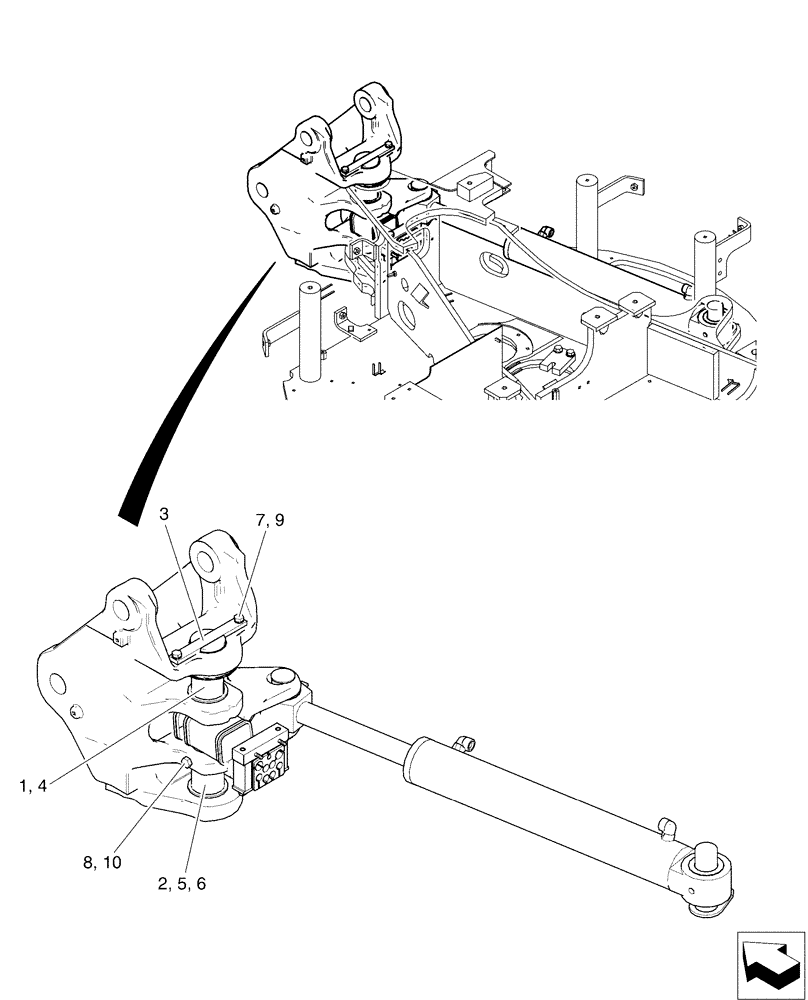

Запчасти Case CX36B (01-006[00]) - BRACKET INSTAL,SWING (39) - FRAMES AND BALLASTING

PX02B00149F1

Swing

1шт.

1

PX02B01239P1

PIN,65mm OD x 163mm L

1шт.

2

PX02B01275P1

PIN,65mm OD x 134mm L

1шт.

3

PX02B01274P1

PLATE

1шт.

4

PW02B01226P1

WASHER

1шт.

5

2445R138D4

SEAL,65mm ID x 80mm OD x 4mm Thk

Dust

2шт.

6

PW02B01224P1

SHIM,0.5mm Thk

1шт.

7

ZS18C10025

SCREW,Hex, M10 x 25mm

Cap

2шт.

8

HS18C12150G1

SCREW

Cap

1шт.

9

ZW26X10000

LOCK WASHER

2шт.

10

ZN18C12010

NUT

2шт.
