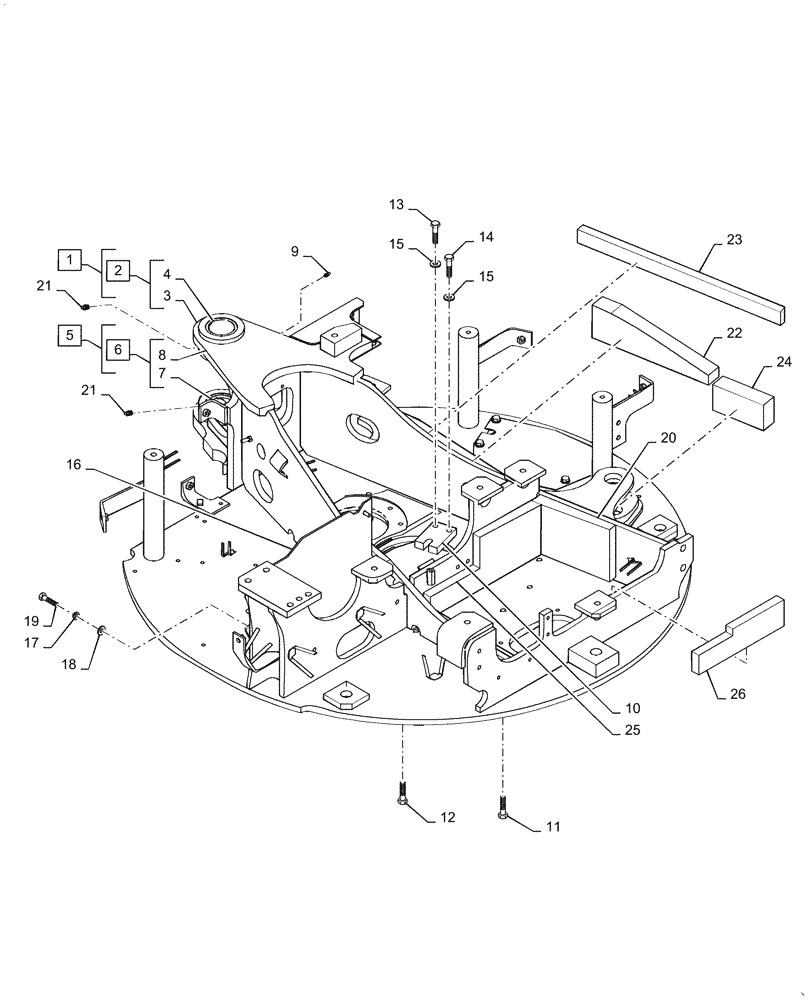

Запчасти Case CX36B (01-003[01]) - FRAME GROUP, UPPER (39) - FRAMES AND BALLASTING

.

Frame Group, Upper, PW52F00047F1

1шт.

1

PW52F00060P1

Upper, Incl 2, Serial Range: PX15-21105-PX15-21263

1шт.

2

PW52F01427F1

BRACKET

Incl 3, 4

1шт.

3

PW52F01355P1

Bracket

1шт.

4

PW52F01425P2

BUSHING

2шт.

5

PW52F00060P2

Upper, Incl 6, Start Serial: PX15-21264

1шт.

6

PW52F01427F2

BRACKET

Incl 7, 8

1шт.

7

PW52F01425P2

BUSHING

2шт.

8

PW52F01355P2

Bracket

1шт.

9

ZG91U02000

LUBE NIPPLE

, Serial Range: PX15-21105-PX15-21263

1шт.

10

PW52F01387P1

STOP

1шт.

11

ZS18C12070

SCREW,Hex, M12 x 70mm

Cap

15шт.

12

HS58C12070G2

BOLT

Cap

1шт.

13

ZS18C12040

SCREW,Hex, M12 x 40mm

Cap, Serial Range: PX15-21105-PX15-21157

2шт.

14

ZM73C12040

BOLT,M12x40mm - Course Thread

Sems, Start Serial: PX15-21158

2шт.

15

ZW16H12000

WASHER

, Serial Range: PX15-21105-PX15-21157

2шт.

16

PW52F01330P1

PLATE

1шт.

17

ZW26X10000

LOCK WASHER

2шт.

18

ZW16P10000

WASHER

2шт.

19

ZS18C10025

SCREW,Hex, M10 x 25mm

Cap

2шт.

20

PW52F01309P1

FOAM INSULATION

1шт.

21

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

, Serial Range: PX15-21105-PX15-21263

1шт.

21

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

, Start Serial: PX15-21264

2шт.

22

PW52F01416P1

FOAM INSULATION

1шт.

23

PW52F01417P1

FOAM INSULATION

1шт.

24

PW52F01418P1

FOAM INSULATION

1шт.

25

PW52F01420P1

FOAM INSULATION

1шт.

26

PW52F01421P1

FOAM INSULATION

1шт.
