(03-025[01]) - HYD LINES, ARM (1.59M), (NIBBLER AND BREAKER) - SN PX15-21105 - 22050

Запчасти Case CX36B (03-025[01]) - HYD LINES, ARM (1.59M), (NIBBLER AND BREAKER) - SN PX15-21105 - 22050 (35) - HYDRAULIC SYSTEMS

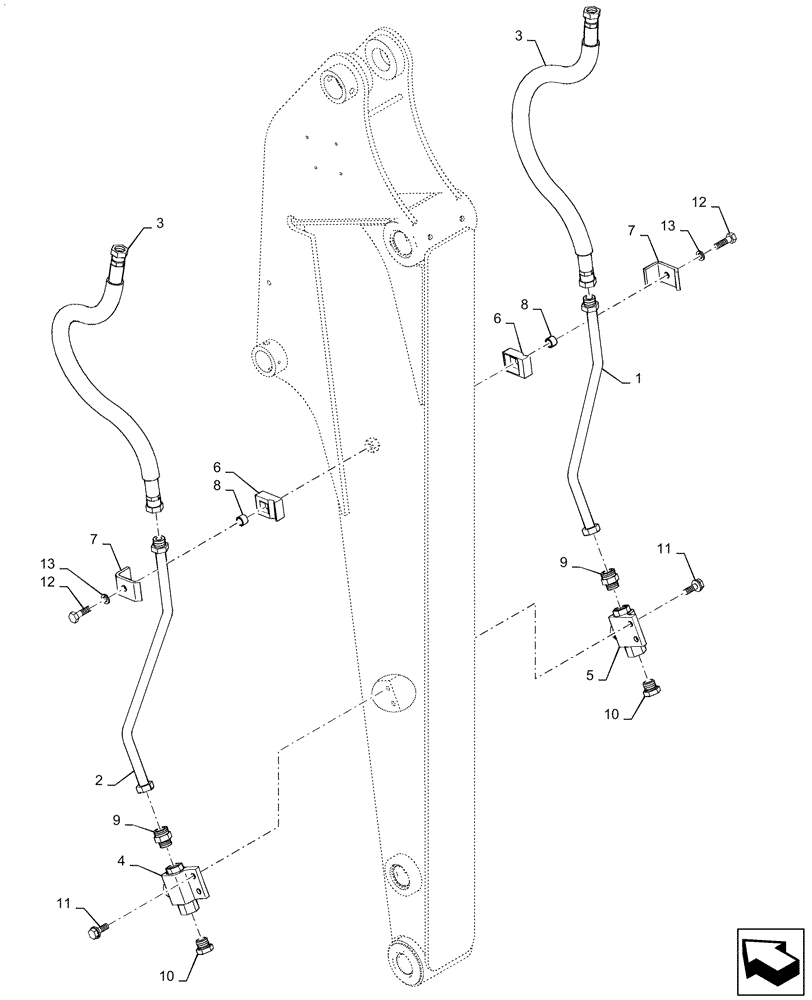

Схема запчастей Case CX36B - (03-025[01]) - HYD LINES, ARM (1.59M), (NIBBLER AND BREAKER) - SN PX15-21105 - 22050 (35) - HYDRAULIC SYSTEMS
9
11
6
13
11
9
12
8
10
4
5
7
13
3
10
12
1
7
2
6
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Hyd Lines, Arm 1.59M, Nibbler and Breaker, PX43H00031F1

1шт.

1

PX43H01035P1

HYD TUBE

1шт.

2

PX43H01036P1

HYD TUBE

1шт.

3

HX55L08076DY

HOSE ASSY.

2шт.

4

YN25V00011F1

VALVE

Stop

1шт.

5

YN25V00012F1

VALVE

Stop

1шт.

6

PV42H01133P2

CLAMP

2шт.

7

PV42H01134P1

CLAMP

2шт.

8

PV42H01137P1

SPACER

2шт.

9

HH25S08008G1

HYD CONNECTOR

2шт.

10

ZE72X08000

PLUG

2шт.

11

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

4шт.

12

ZS18C10035

SCREW,Hex, M10 x 35mm

Cap

2шт.

13

ZW26X10000

LOCK WASHER

2шт.
