(03-024[02]) - HYD LINES, ARM (1.59M), (LONG ARM)

Запчасти Case CX36B (03-024[02]) - HYD LINES, ARM (1.59M), (LONG ARM) (35) - HYDRAULIC SYSTEMS

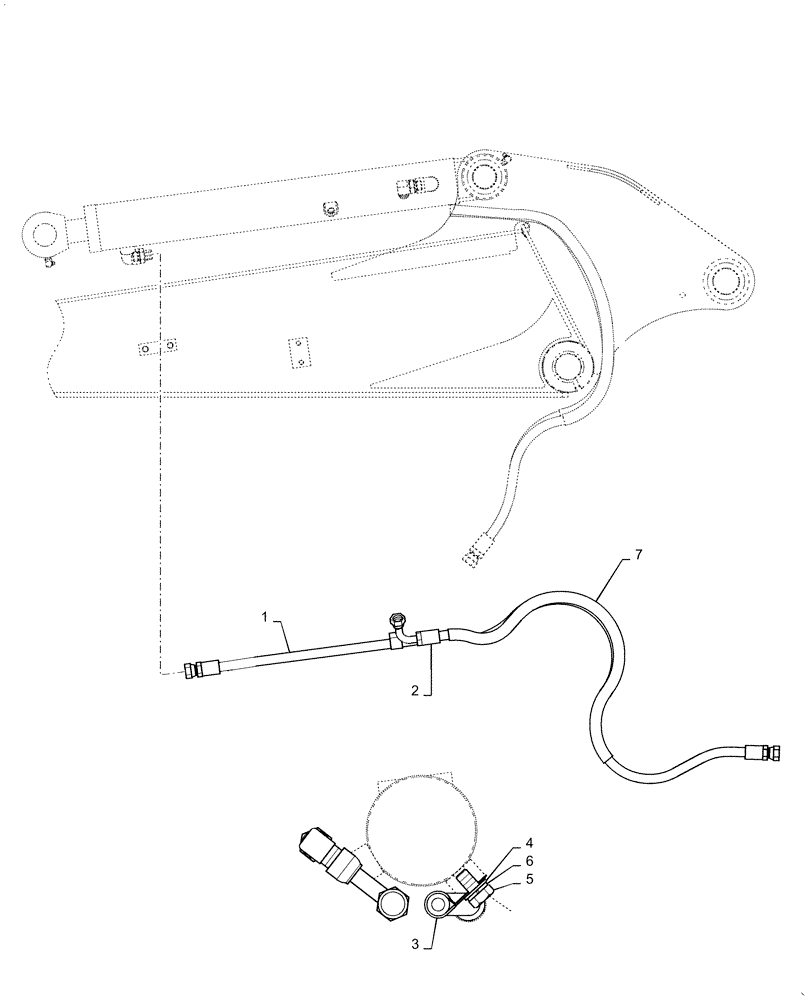

Схема запчастей Case CX36B - (03-024[02]) - HYD LINES, ARM (1.59M), (LONG ARM) (35) - HYDRAULIC SYSTEMS
6
1
3
5
2
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Hyd Lines, Arm 1.59M, Long Arm, PX43H00026F1

1шт.

1

PM42H01144DM

HYDRAULIC HOSE,9.5mm ID x 1740mm L

1шт.

2

PX42H01169D4

HOSE,9.5mm ID x 1300mm L

1шт.

3

ZC46X16011

CLIP

1шт.

4

ZW16X10000

WASHER

1шт.

5

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

6

ZW26X10000

LOCK WASHER

1шт.

7

2414Z199D120

PROTECTIVE SLEEVE

Hose

2шт.
