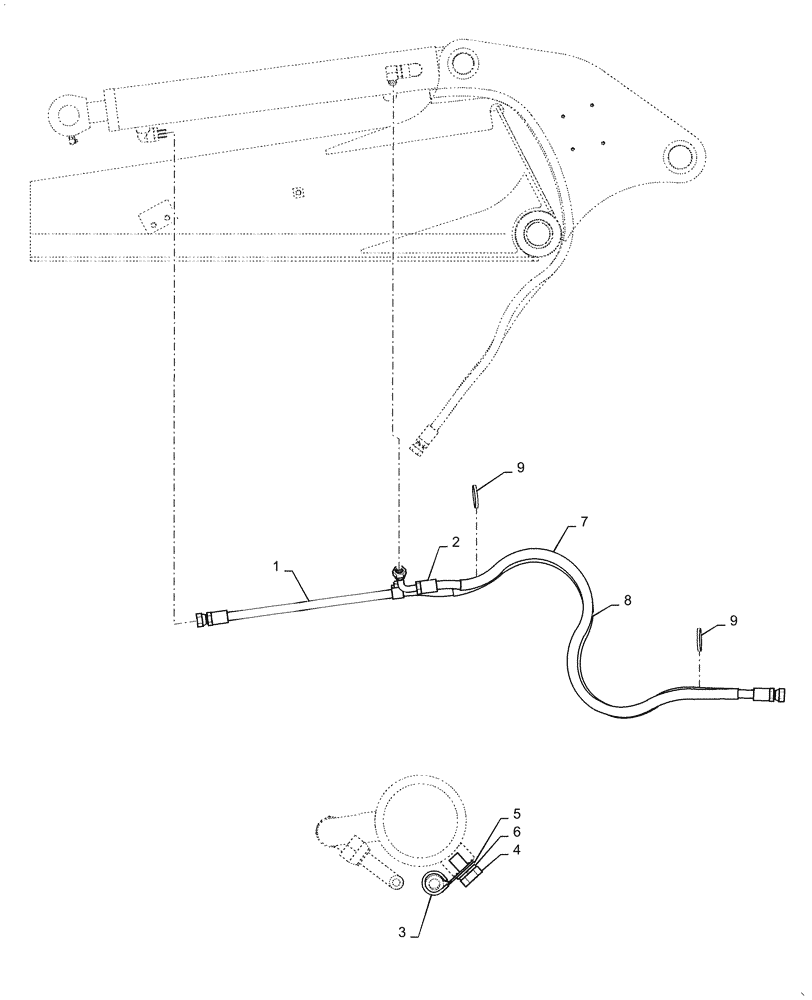

Запчасти Case CX36B (03-022[01]) - HYD LINES, ARM (1.32M) (35) - HYDRAULIC SYSTEMS

.

Hydraulic Lines, Arm, 1.32M, PX43H00028F1, Start Serial: PX15-21105

1шт.

1

PM42H01042DM

HYDRAULIC HOSE,9.5mm ID x 1500mm L

1шт.

2

PX42H01169D6

HOSE,9.5mm ID x 1050mm L

1шт.

3

ZC46X16011

CLIP

1шт.

4

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

5

ZW16X10000

WASHER

1шт.

6

ZW26X10000

LOCK WASHER

1шт.

7

2414Z199D090

PROTECTIVE SLEEVE

Guard, Serial Range: PX15-21105-PX15-21194

2шт.

8

2414Z199D95

PROTECTIVE SLEEVE

, Start Serial: PX15-21195

2шт.

9

PY01P01043D3

CABLE TIE,188mm L

2шт.
