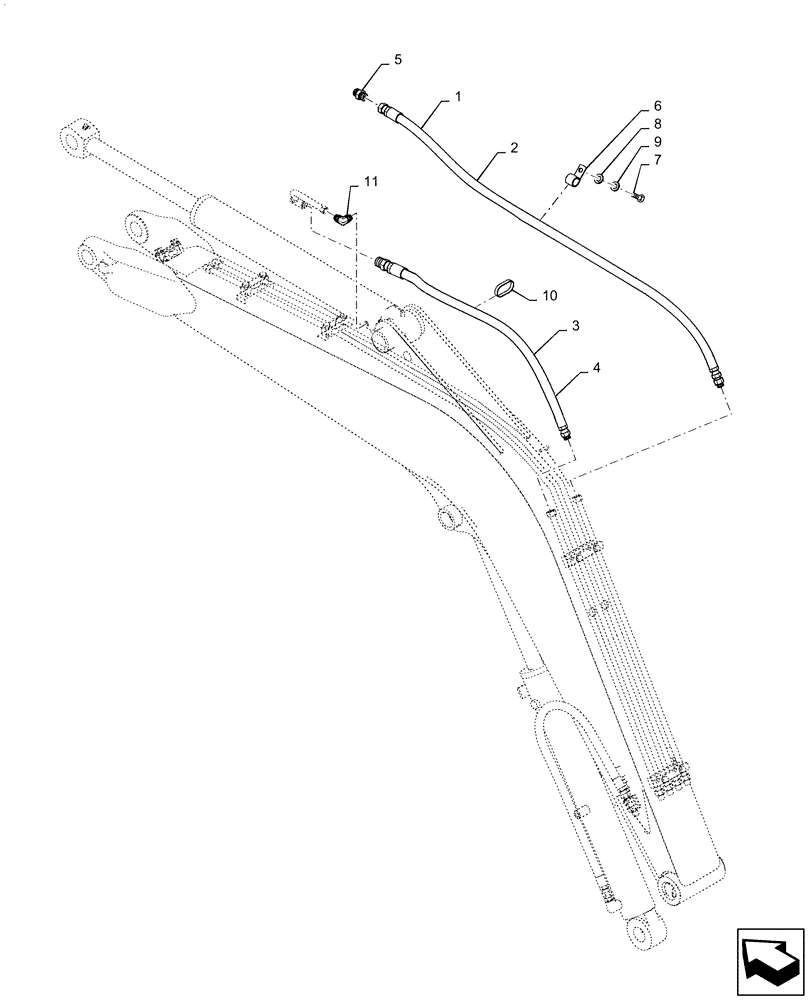

Запчасти Case CX36B (03-009[01]) - HYD LINES, CYLINDER (ARM) (35) - HYDRAULIC SYSTEMS

.

Hydraulic Lines, Cylinder, Arm, PX42H00057F1

1шт.

1

PW42H01104D7

HOSE,9.5mm ID x 1420mm L

, Serial Range: PX15-21105-PX15-22075

1шт.

2

PW42H01217D7

HOSE

, Start Serial: PX15-22076

1шт.

L=1420

1шт.

3

PX42H01170D2

HYDRAULIC HOSE

, Serial Range: PX15-21105-PX15-22075

1шт.

4

PX42H01263D1

HOSE

, Start Serial: PX15-22076

1шт.

L=850

1шт.

5

HH25S06006G1

HYD CONNECTOR

1шт.

6

ZC46X19011

CLIP

1шт.

7

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

8

ZW26X10000

LOCK WASHER

1шт.

9

ZW16X10000

WASHER

1шт.

10

PY01P01043D8

CABLE TIE,102mm L

1шт.

11

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.
