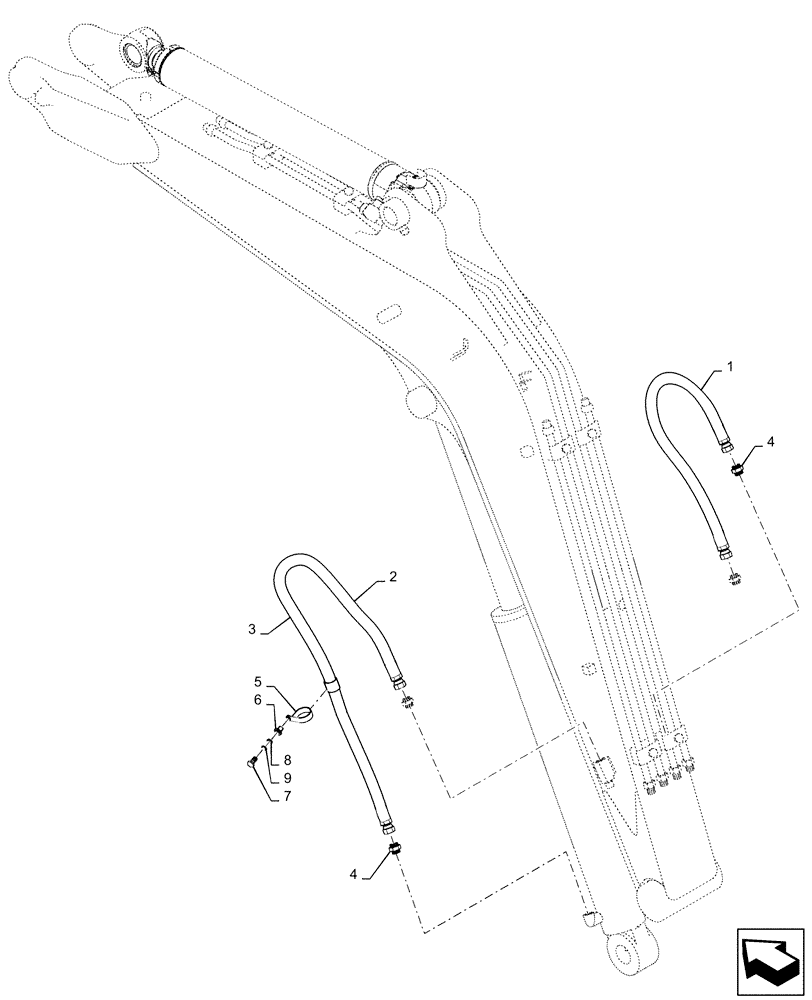

Запчасти Case CX36B (03-008[01]) - HYD LINES, CYLINDER (BOOM) (35) - HYDRAULIC SYSTEMS

.

Hydraulic Lines, Cylinder Boom, PX42H00087F1

1шт.

1

PW42H01104DB

HOSE,9.5mm ID x 750mm L

1шт.

2

PW42H01104DT

HYDRAULIC HOSE

, Serial Range: PX15-21105-PX15-22075

1шт.

3

PW42H01217D3

HOSE

, Start Serial: PX15-22076

1шт.

L=1040

1шт.

4

HH25S06006G1

HYD CONNECTOR

1шт.

5

ZC46X25011

CLIP

1шт.

6

PX42H01171P1

BUSHING

1шт.

Boom Cylinder

1шт.

7

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

8

ZW16X10000

WASHER

1шт.

9

ZW26X10000

LOCK WASHER

1шт.
