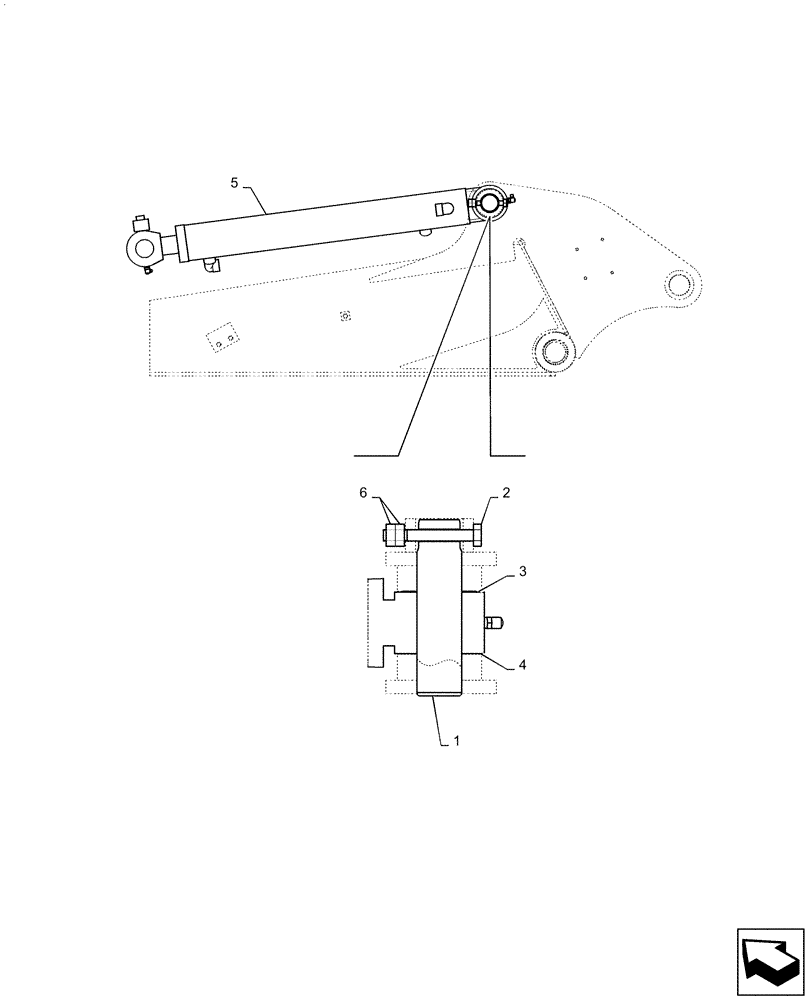

Запчасти Case CX36B (03-005[05]) - CYLINDER INSTALL, (BUCKET) - SN PX15-21158 - 22322 (35) - HYDRAULIC SYSTEMS

.

Cylinder Install, Bucket, PX12B00163F1

1шт.

1

PX12B01206P1

PIN,40mm OD x 157mm L

1шт.

2

HS18C10080G3

BOLT

1шт.

3

PR12B01113P1

SHIM,0.5mm Thk

1шт.

4

PR02B01123D1

SHIM,0.9mm Thk

1шт.

5

PX01V00067F1

HYDRAULIC CYLINDER

Bucket

1шт.

With Rod Cover

1шт.

6

ZN18C10008

NUT

2шт.
