(03-005[04]) - CYLINDER ASSY (BUCKET, ARM LONG)

Запчасти Case CX36B (03-005[04]) - CYLINDER ASSY (BUCKET, ARM LONG) (35) - HYDRAULIC SYSTEMS

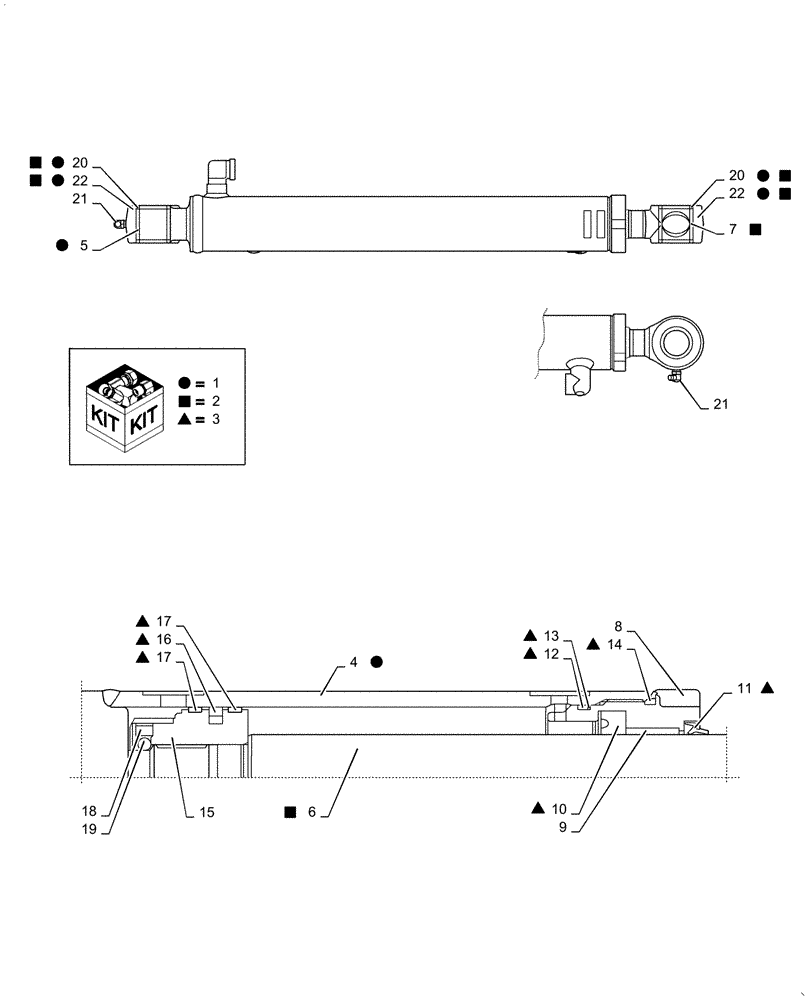

Схема запчастей Case CX36B - (03-005[04]) - CYLINDER ASSY (BUCKET, ARM LONG) (35) - HYDRAULIC SYSTEMS
17
2
3
2
4
3
1
1
10
3
6
13
8
18
1
2
1
7
2
3
1
21
2
5
1
9
21
2
2
22
3
15
2
20
14
16
3
3
12
3
11
22
20
3
17
1
1
19
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Cylinder Install, Bucket, Long Arm, PW12B00136F1

1шт.

.

PX01V00064F1

HYDRAULIC CYLINDER

Assembly, Incl 2 - 22

1шт.

1

PX01V00064R100

REPAIR KIT

Incl 4 (1), 5 (1), 20 (2), Serial Range: PX15-21105-PX15-21961

1шт.

1

PX01V00064R100

REPAIR KIT

Incl 4 (1), 5 (1), 22 (2), Start Serial: PX15-21962

1шт.

2

PX01V00041R200

ROD

Repair Kit, Incl 6 (1), 7 (1), 20 (2), Serial Range: PX15-21105-PX15-21961

1шт.

2

PX01V00041R200

ROD

Repair Kit, Incl 6 (1), 7 (1), 22 (2), Start Serial: PX15-21962

1шт.

3

PX01V00041R300

REPAIR KIT

Incl 10 - 14 (1), 16 (1), 17 (2)

1шт.

4

NSS

NOT SOLD SEPARAT

Tube Assy, Incl in 1

1шт.

5

PV12B01186D1

BUSHING

Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Rod, Piston, Incl in 2

1шт.

7

PX01V00041S004

BUSHING

Incl in 2

1шт.

8

PX01V00041S005

CYLINDER HEAD

1шт.

9

PM01V00060S031

BUSHING

1шт.

10

2438U477S6

RING

U

1шт.

11

PH01V00004S006

WIPER

Ring

1шт.

12

ZD12G06000

O-RING,59.40mm ID x 65.60mm OD x 3.10mm

Incl in 3

1шт.

13

PW01V00046S008

BACK-UP RING,62mm ID x 68mm OD x 2.5mm Thk

Incl in 3

1шт.

14

ZD12G06500

O-RING,64.40mm ID x 70.60mm OD x 3.10mm

Incl in 3

1шт.

15

PX01V00041S012

PISTON

1шт.

16

2438U1289S16

RING,48mm ID x 58mm OD x 5mm Thk

Incl in 3

1шт.

17

PM01V00067S019

RING,51mm ID x 67mm OD x 3mm Thk

Incl in 3

2шт.

18

2438U1057S16

SET SCREW

1шт.

19

2436U946S11

BALL

1шт.

20

PR01V00002S027

SEAL

Dust, Serial Range: PX15-21105-PX15-21961

4шт.

21

ZG91U02000

LUBE NIPPLE

Grease

2шт.

22

PR01V00001S024

GASKET

Seal, Dust, Start Serial: PX15-21962

4шт.
