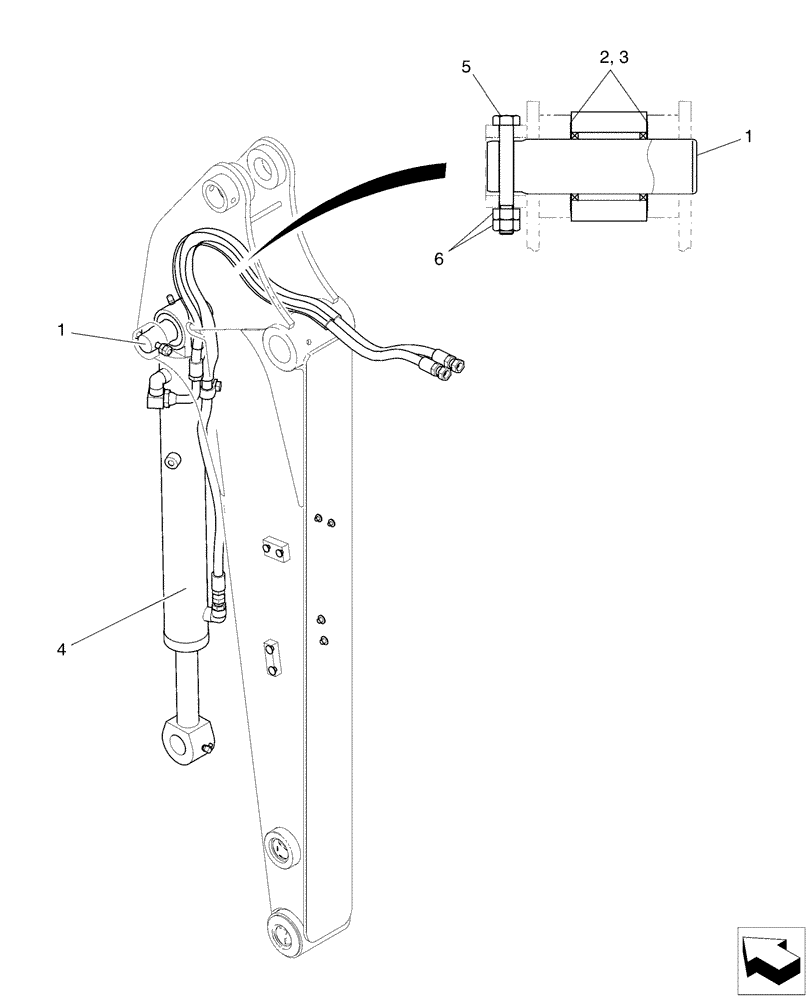

Запчасти Case CX36B (03-005[01]) - CYLINDER INSTALL, (BUCKET) (35) - HYDRAULIC SYSTEMS

1

PX12B01206P1

PIN,40mm OD x 157mm L

1шт.

2

PR12B01113P1

SHIM,0.5mm Thk

(0.5)

1шт.

3

PR02B01123D1

SHIM,0.9mm Thk

(0.9)

1шт.

4

PX01V00064F1

HYDRAULIC CYLINDER

Bucket

1шт.

5

HS18C10080G3

BOLT

Cap

1шт.

6

ZN18C10008

NUT

2шт.
