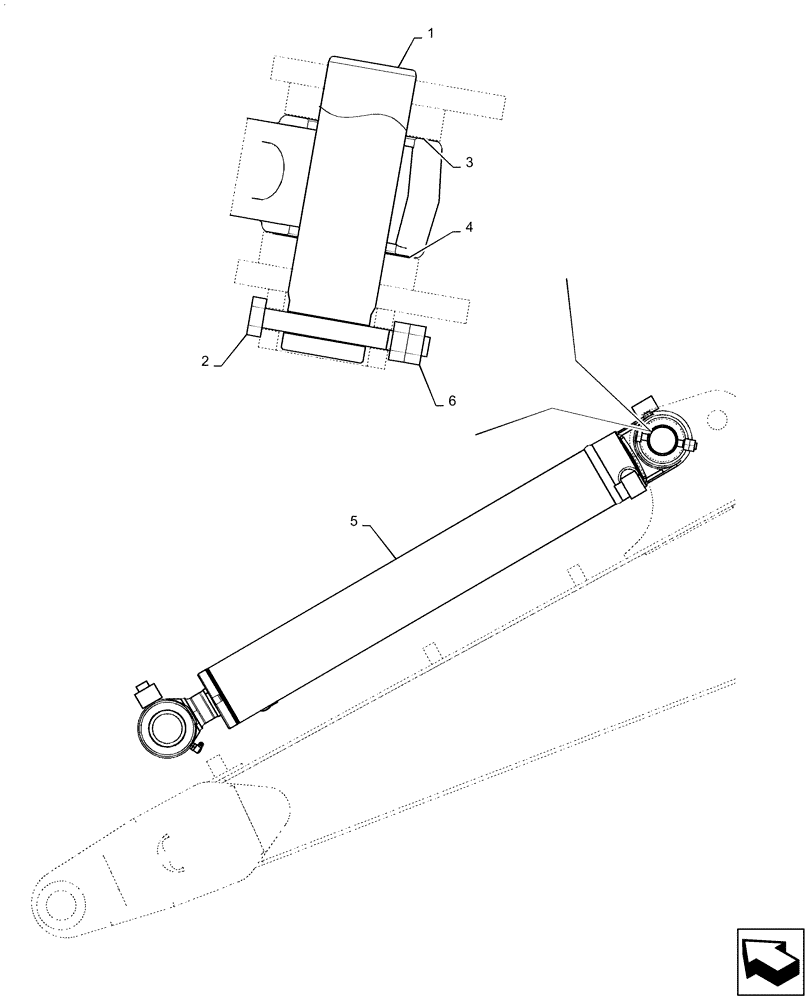

Запчасти Case CX36B (03-004[03]) - CYLINDER INSTALL, ARM - SN PX15-21158 - 22322 (35) - HYDRAULIC SYSTEMS

.

Cylinder Install, Arm, PX02B00211F1

1шт.

1

PW02B01306P1

PIN,45mm OD x 151mm L

1шт.

2

HS18C10085G2

BOLT

Screw, Cap

1шт.

3

YJ12B01097P1

SHIM,47mm ID x 70mm OD x 0.5mm Thk

1шт.

4

PR02B01121D1

SHIM,47mm ID x 70mm OD x 0.9mm Thk

2шт.

5

PX01V00068F1

HYDRAULIC CYLINDER

Arm

1шт.

6

ZN18C10008

NUT

2шт.
