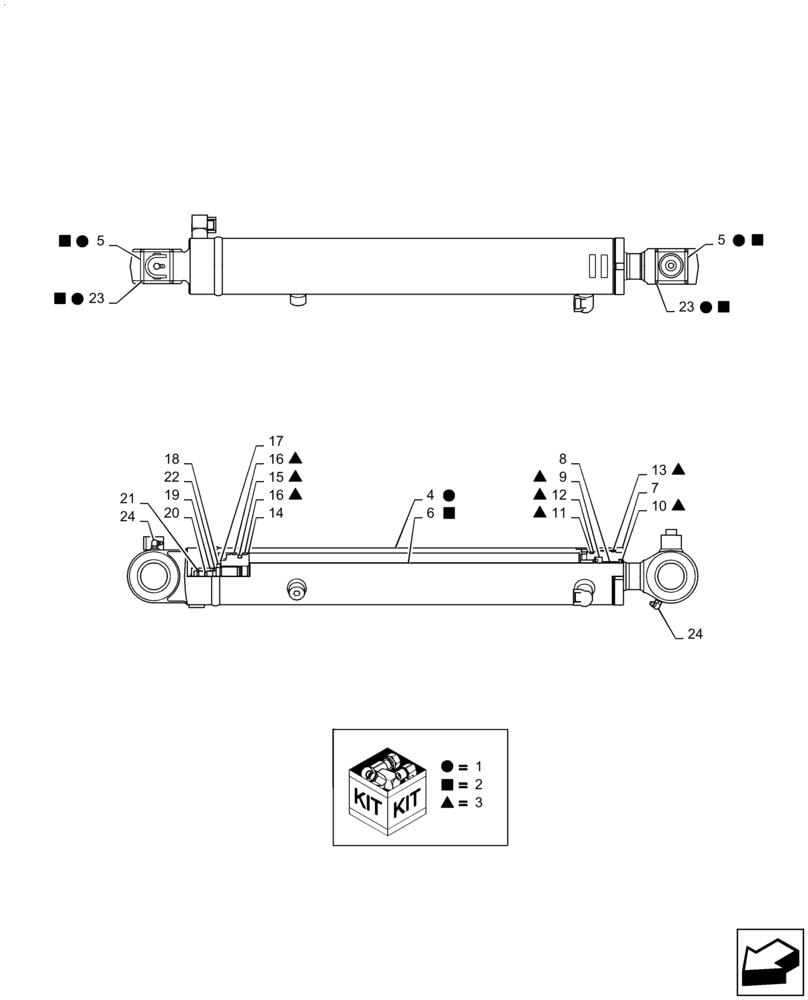

Запчасти Case CX36B (03-004[02]) - CYLINDER ASSY, ARM - SN PX15-21105 (35) - HYDRAULIC SYSTEMS

.

PX01V00063F2

HYDRAULIC CYLINDER

Assembly, Incl 3 - 24

1шт.

1

PX01V00063R100

REPAIR KIT

Incl 4 (1), 5 (1), 23 (2)

1шт.

2

PX01V00063R400

KIT

Incl 5 (1), 6 (1), 23 (2)

1шт.

3

PX01V00042R300

SEAL

Incl 9 - 13 (1), 15 (1), 16 (2)

1шт.

4

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

5

PW01V01086D1

BUSHING

Incl in 1 or 2

2шт.

6

NSS

NOT SOLD SEPARAT

Rod, Piston, Incl in 2

1шт.

7

PW01V00068S004

CYLINDER END CAP

Head

1шт.

8

PV01V00047S019

BUSHING

1шт.

9

2438U635S3

RING

Incl in 3

1шт.

10

PH01V00006S006

RING

Incl in 3

1шт.

11

ZD12G07500

O-RING,74.40mm ID x 80.60mm OD x 3.10mm

Incl in 3

1шт.

12

PH01V00015S008

BACK-UP RING

Incl in 3

1шт.

13

ZD12G08000

O-RING,79.40mm ID x 85.60mm OD x 3.10mm

Incl in 3

1шт.

14

PX01V00042S011

PISTON

1шт.

15

2438U852S15

RING

Seal, Piston

1шт.

16

PW01V00068S018

RING

Incl in 3

2шт.

17

2438U1057S16

SET SCREW

1шт.

18

2436U946S11

BALL

1шт.

19

PX01V00048S016

CUSHION

Ring

1шт.

20

YT01V00002S023

SEAL

1шт.

21

2438U1116S24

STOP

2шт.

22

2438U1116S23

RING

Snap

1шт.

23

PR01V00002S027

SEAL

Dust

4шт.

24

PR01V00029S023

LUBE NIPPLE

Grease

2шт.
