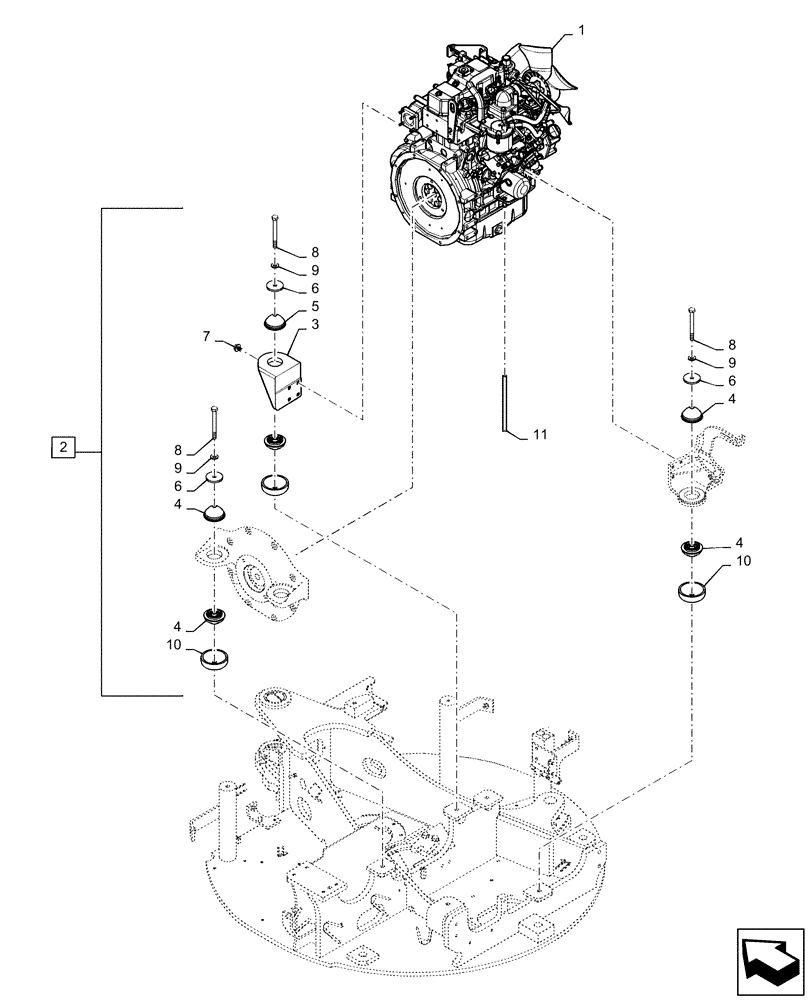

Запчасти Case CX36B (01-012[01]) - ENGINE INSTALL (COOLER) - SN PX15-21105 - 22566 (10) - ENGINE

.

Engine Install, Cooler, PW02P00027F1

1шт.

1

PW02P00018F2

ENGINE

Assy

1шт.

2

PW02P00028F1

Incl 3 - 11

1шт.

3

PW02P01056P1

BRACKET

1шт.

4

PW02P01054D1

RUBBER MOUNTING

6шт.

5

PW02P01054D2

RUBBER MOUNTING

2шт.

6

PW01P01022P1

WASHER

4шт.

7

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

4шт.

8

ZS18C12120

SCREW,Hex, M12 x 120mm

Cap

4шт.

9

ZW16H12000

WASHER

4шт.

10

PW02P01041P1

COVER

4шт.

11

PW02P01047D1

HOSE,12mm ID x 250mm L

1шт.
