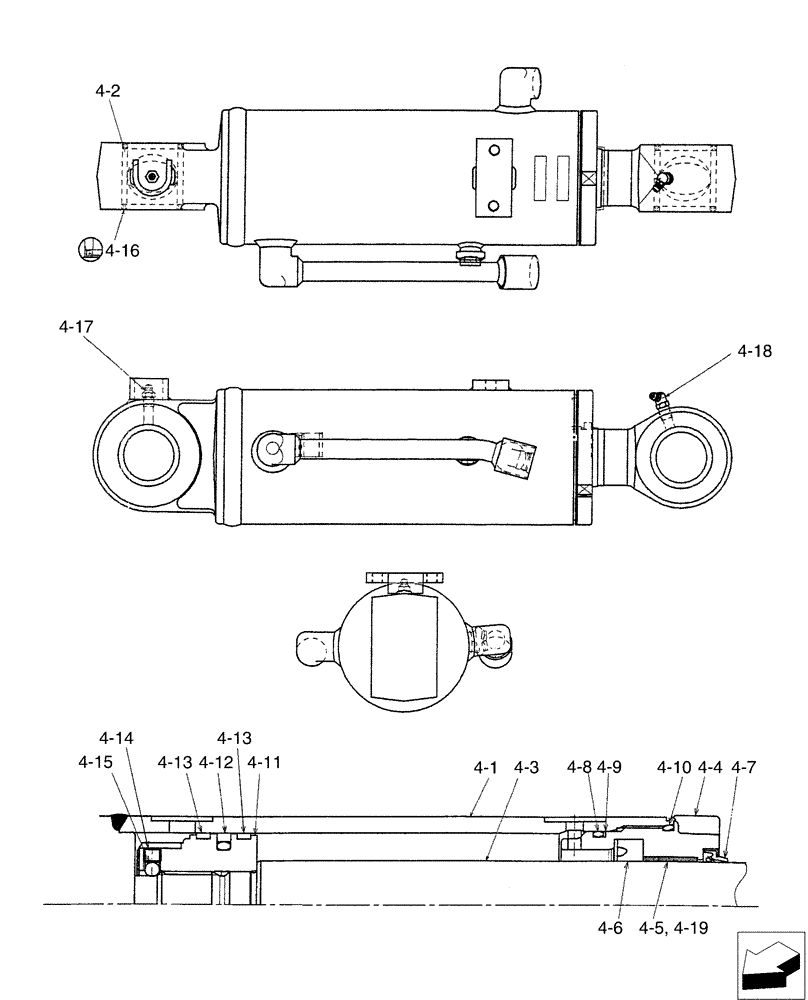

Запчасти Case CX36B (02-023[02]) - CYLINDER, ASSY - DOZER (35) - HYDRAULIC SYSTEMS

.

PX01V00043F2

CYLINDER

Assy, Incl 4-1 - 4-19

1шт.

4-1

NSS

NOT SOLD SEPARAT

Tube Assy.

1шт.

4-2

PX01V00043S002

BUSHING

2шт.

4-3

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

4-4

PX01V00043S004

CYLINDER HEAD

1шт.

4-6

2438U345S15

RING

U

1шт.

4-7

PH01V00011S006

GASKET

Ring, Wiper

1шт.

4-8

ZD12G09500

O-RING,3.1mm Thk x 94.4mm ID, 90 Duro

O-Ring

1шт.

4-9

PY01V00030S008

BACK-UP RING

1шт.

4-10

ZD12G10000

O-RING,99.40mm ID x 105.60mm OD x 3.10mm

1шт.

4-11

PX01V00043S011

PISTON

1шт.

4-12

2438U827S20

SEALING RING

SEALRING

1шт.

4-13

PY01V00030S017

RING

2шт.

4-14

2438U986S18

SET SCREW

Set

1шт.

4-15

2436U281S37

BALL

1шт.

4-16

PR01V00002S027

SEAL

Dust

4шт.

4-17

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

4-18

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

1шт.

4-19

PX01V00043S019

BUSHING

1шт.

PX01V00043R100

TUBE

Consists Of Ref:4-1 (1), 4-2 (1), 4-16 (2)

1шт.

PX01V00043R200

ROD

Consists Of Ref:4-2 (1), 4-3 (1), 4-16 (2)

1шт.

PX01V00043R300

SEAL

Consists Of Ref:4-6 (1), 4-7 (1), 4-8 (1), 4-9 (1), 4-10 (1), 4-12 (1), 4-13 (2)

1шт.
