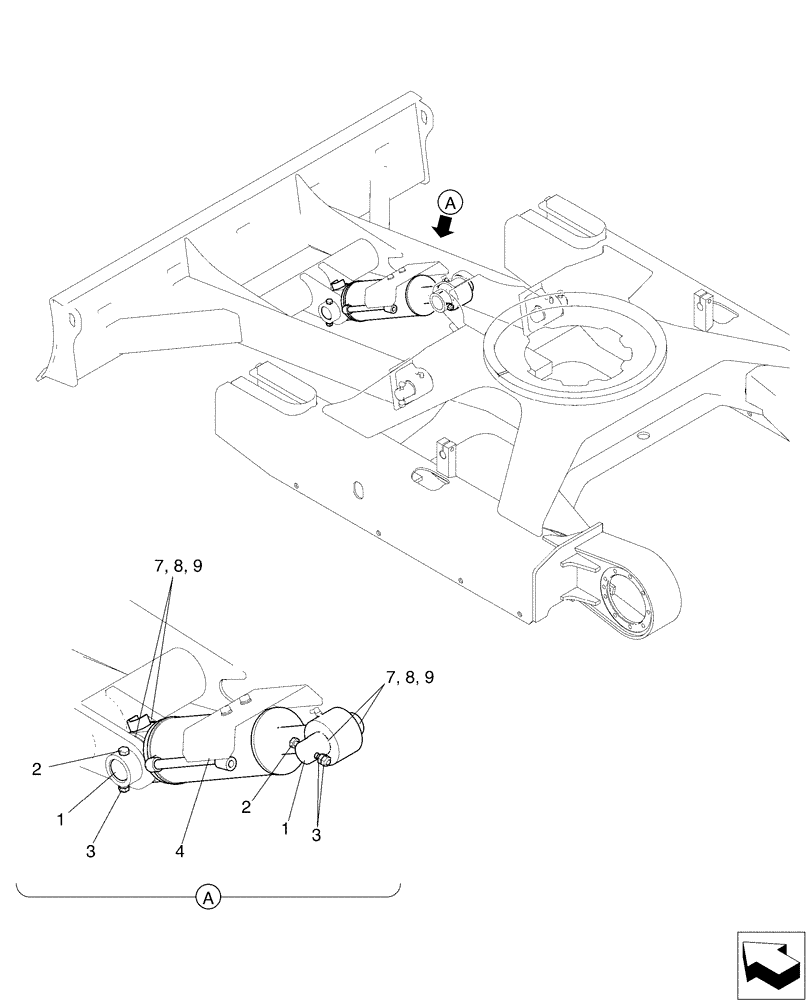

Запчасти Case CX36B (02-023[01]) - CYLINDER INSTAL - DOZER (35) - HYDRAULIC SYSTEMS

1

PH12B01009P1

PIN,45mm OD x 137mm L

2шт.

2

ZS18C10085

SCREW,Hex, M10 x 85mm

Cap

2шт.

3

ZN18C10008

NUT

4шт.

4

PX01V00043F2

CYLINDER

Dozer

1шт.

7

B16T0442D64

SHIM,70mm OD x 47mm ID x 1.2mm Thk

2шт.

8

B16T0442D65

SHIM,70mm OD x 47mm ID x 1.6mm Thk

2шт.

9

B16T0442D66

SHIM,70mm OD x 47mm ID x 2.3mm Thk

2шт.
