(02-022[01]) - CYLINDER, ASSY (ANGLE DOZER)

Запчасти Case CX36B (02-022[01]) - CYLINDER, ASSY (ANGLE DOZER) (35) - HYDRAULIC SYSTEMS

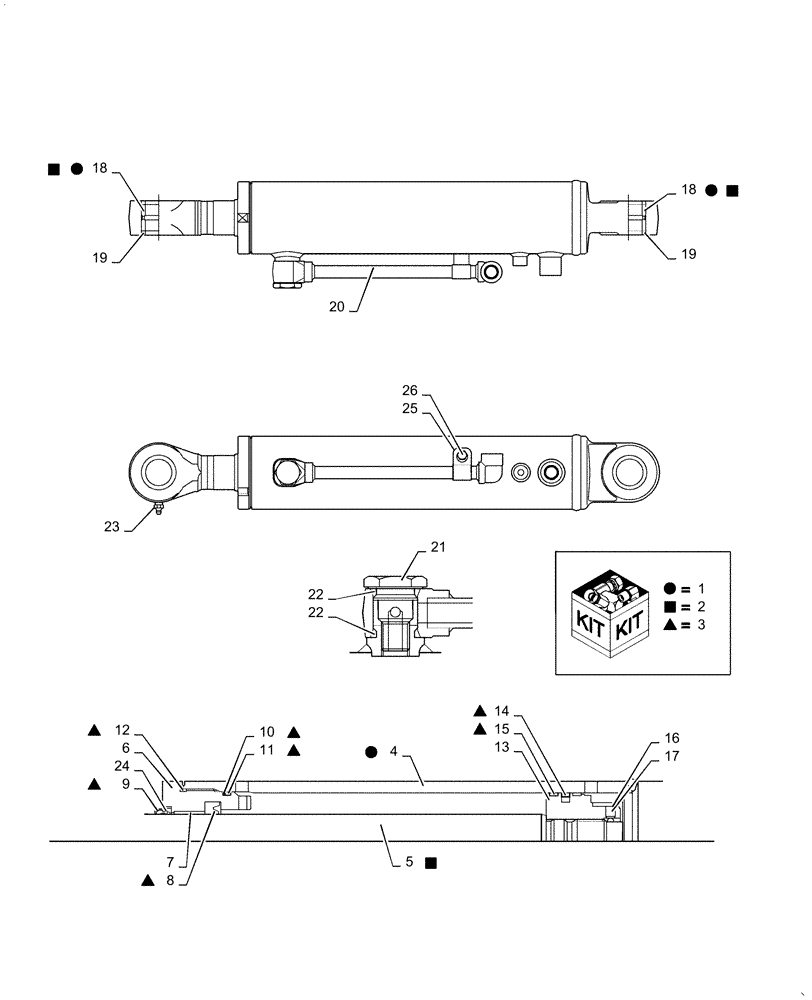

Схема запчастей Case CX36B - (02-022[01]) - CYLINDER, ASSY (ANGLE DOZER) (35) - HYDRAULIC SYSTEMS
1
10
3
21
26
4
20
3
3
3
18
15
2
23
6
3
19
18
24
17
7
2
1
3
3
22
3
1
9
14
12
1
16
2
25
22
8
19
3
1
11
2
5
2
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

PW01V00052F2

HYDRAULIC CYLINDER

Angle Dozer, PW01V00052F2

1шт.

1

PW01V00052R100

REPAIR KIT

Incl 4 (1), 18 (1), Serial Range: PX15-21105-PX15-22655

1шт.

2

PW01V00052R200

REPAIR KIT

Incl 5 (1), 18 (1), Serial Range: PX15-21105-PX15-22655

1шт.

3

PW01V00048R300

REPAIR KIT

Incl 8 - 12 (1), 14 (1), 15(2), Serial Range: PX15-21105-PX15-22655

1шт.

4

NSS

NOT SOLD SEPARAT

Tube Assy, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Rod, Piston, Incl in 2

1шт.

6

PW01V00043S003

CYLINDER HEAD

1шт.

7

PW01V00010S004

BUSHING

1шт.

8

2438U635S3

RING

Incl 3

1шт.

9

PH01V00006S006

RING

Incl 3

1шт.

10

ZD12G07500

O-RING,74.40mm ID x 80.60mm OD x 3.10mm

Incl 3

1шт.

11

PH01V00015S008

BACK-UP RING

Incl 3

1шт.

12

ZD11G08000

O-RING,79.40mm ID x 85.60mm OD x 3.10mm

Incl 3

1шт.

13

PW01V00043S015

PISTON

1шт.

14

2438U852S15

RING

Seal, Piston

1шт.

15

PH01V00015S017

RING

Incl 3

2шт.

16

2438U1057S16

SET SCREW

1шт.

17

2436U946S11

BALL

1шт.

18

PW01V00052S015

BUSHING

Incl in 1 or 2

2шт.

19

PW01V00012S020

WIPER SEAL

Ring

4шт.

20

PW01V00052S017

TUBE

1шт.

21

PH01V00017S027

PLUG

1шт.

22

ZD12P02290

O-RING

2шт.

23

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

Grease

1шт.

24

PW01V00043S030

CAP

1шт.

25

PW01V00043S032

CLAMP

1шт.

26

LF01V00002S034

BOLT

Assy

1шт.
