(02-016[00]) - HYD CONNECTOR, SWING JOINT - ANGLE, DOZER

Запчасти Case CX36B (02-016[00]) - HYD CONNECTOR, SWING JOINT - ANGLE, DOZER (35) - HYDRAULIC SYSTEMS

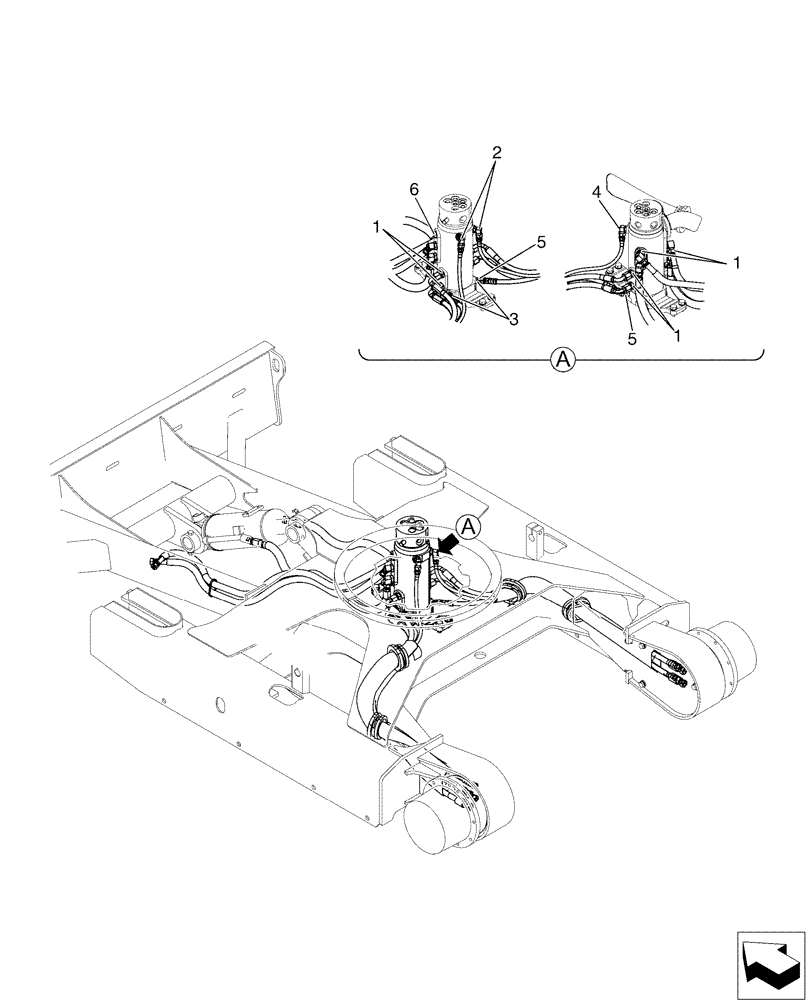

Схема запчастей Case CX36B - (02-016[00]) - HYD CONNECTOR, SWING JOINT - ANGLE, DOZER (35) - HYDRAULIC SYSTEMS
5
6
5
2
1
1
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PX19H00005F1

HYD TUBE

Hyd., Swivel (Angle Dozer)

1шт.

1

HH25S06006G1

HYD CONNECTOR

4шт.

2

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

2шт.

3

HH35S04006G1

90 ELBOW,90 Degree, 1/4" PF x 3/8" PF x 60mm L

2шт.

4

HH35S04004G1

90 ELBOW

2шт.

5

HH45S04004G1

45 ELBOW

2шт.

6

ZE72X04000

PLUG

1шт.
