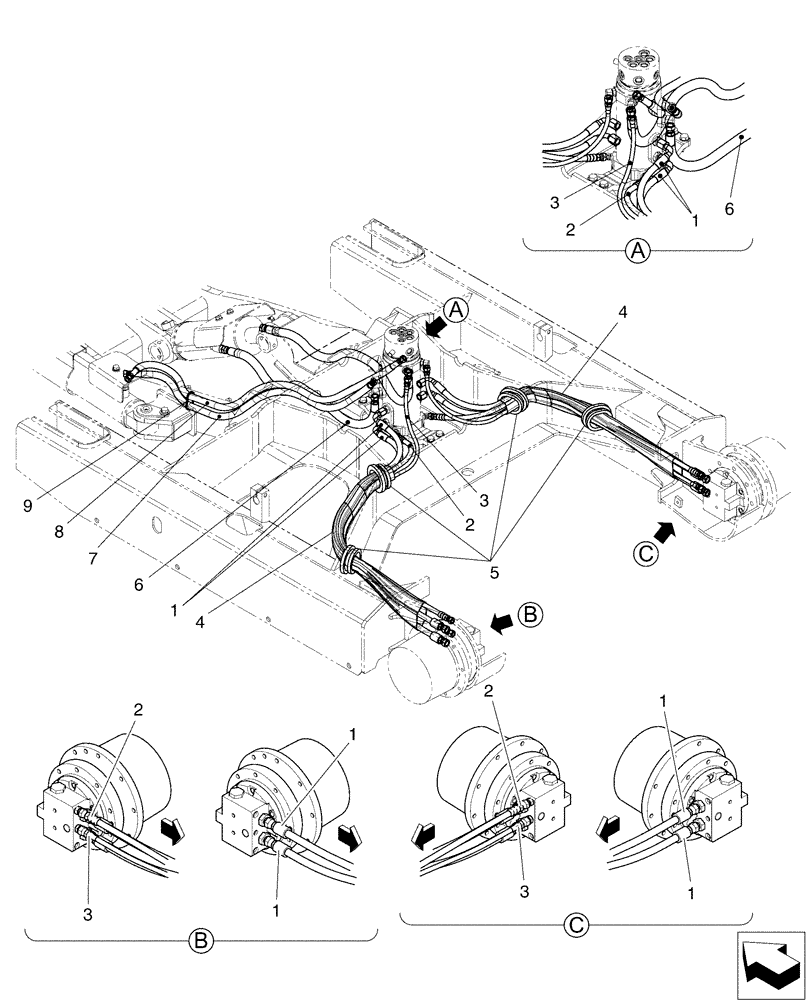

Запчасти Case CX36B (02-013[00]) - HYD LINES, LOW - ANGLE DOZER (35) - HYDRAULIC SYSTEMS

PX02H00010F1

Hyd. Lines, Low (Angle Dozer)

1шт.

1

HX35L06115DY

HOSE,9.5mm ID x 1150mm L

4шт.

2

HX23L04120DX

HOSE ASSY.,6.3mm ID x 1200mm L

2шт.

3

PW02H01014D2

HOSE ASSY.

2шт.

4

PW01P01003DC

HOSE,45mm ID x 730mm L

2шт.

5

PX02H01001P1

GROMMET

4шт.

6

PW02H01002DP

HOSE

2шт.

7

PH02H01052D6

HOSE

1шт.

8

PH02H01052DB

HOSE

1шт.

9

PY01P01043D5

CABLE TIE,301mm L

1шт.
