(02-004[03]) - JOINT INSTALL, SWIVEL, (ANGLE DOZER)

Запчасти Case CX36B (02-004[03]) - JOINT INSTALL, SWIVEL, (ANGLE DOZER) (35) - HYDRAULIC SYSTEMS

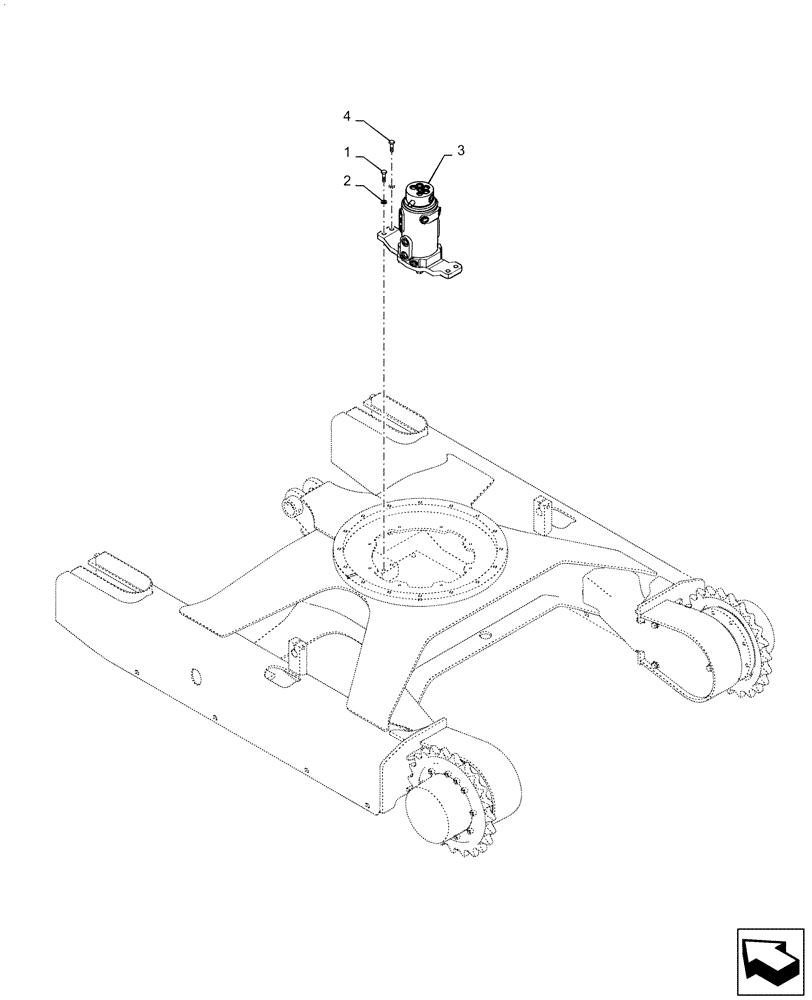

Схема запчастей Case CX36B - (02-004[03]) - JOINT INSTALL, SWIVEL, (ANGLE DOZER) (35) - HYDRAULIC SYSTEMS
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Joint Install Swivel, Angle Dozer, PW19H00024F2, Start Serial: PX15-21221

1шт.

1

ZS18C12030

SCREW,Hex, M12 x 30mm

Cap, Serial Range: PX15-21221-PX15-22813

4шт.

2

ZW16X12000

WASHER

, Serial Range: PX15-21221-PX15-22813

4шт.

3

PW55V00014F2

JOINT

Swivel

1шт.

PTPA

1шт.

4

ZM73C12030

BOLT,M12x30mm - Course Thread

Sems, Start Serial: PX15-22814

4шт.
