(02-003[03]) - MOTOR INSTAL, PROPEL

Запчасти Case CX36B (02-003[03]) - MOTOR INSTAL, PROPEL (35) - HYDRAULIC SYSTEMS

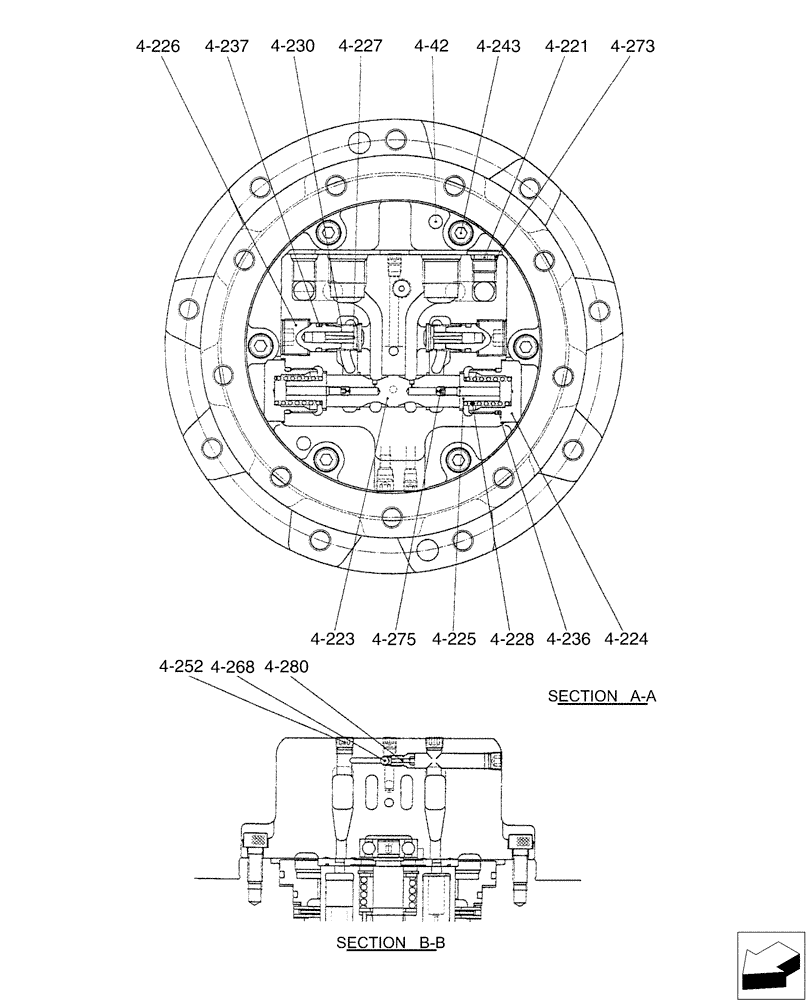

Схема запчастей Case CX36B - (02-003[03]) - MOTOR INSTAL, PROPEL (35) - HYDRAULIC SYSTEMS
4-237
4-42
4-228
4-243
4-273
4-275
4-226
4-223
4-224
4-225
4-221
4-280
4-227
4-230
4-252
4-236
4-268
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

4-42

PY15V00006S142

PIN

2шт.

4-221

2441U995S192

PLUG

2шт.

4-223

NSS

NOT SOLD SEPARAT

Spool

1шт.

4-224

PH15V00009S224

PLUG

2шт.

4-225

PH15V00009S225

SEAT

2шт.

4-226

2441U831S126

PLUG

2шт.

4-228

PH15V00009S228

SPRING

2шт.

4-230

2441U831S130

SPRING

2шт.

4-236

ZD12P02200

O-RING

2шт.

4-237

ZD12P01200

O-RING

2шт.

4-243

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

Cap

6шт.

4-252

YX15V00003S146

PLUG

4шт.

4-268

PH15V00009S268

BALL

1шт.

4-273

ZD12P01100

O-RING

2шт.

4-275

PH15V00009S275

ORIFICE

4шт.

4-280

PH15V00009S280

PLUG

1шт.

PX15V00025R100

REPAIR KIT

Consists Of Ref:4-31 (2)

1шт.

PX15V00025R200

REPAIR KIT

Consists Of Ref:4-104 (1), 4-105 (1), 4-106 (1)

1шт.

PX15V00025R300

REPAIR KIT

Consists Of Ref:4-161 (1), 4-162 (1), 4-163 (1)

1шт.

PX15V00025R400

REPAIR KIT

Consists Of Ref:4-201 (1), 4-223 (1), 4-263 (1), 4-264 (1), 4-266 (1), 4-268 (1), 4-279 (1), 4-280 (1), 4-299 (1)

1шт.

PX15V00025R500

REPAIR KIT

Consists Of Ref:4-221 (2), 4-224 (2), 4-225 (2), 4-226 (2), 4-227 (2), 4-228 (2), 4-230 (2), 4-236 (2), 4-237 (2), 4.273 (2), 4-252 (4), 4-275 (4), 4-56 (6)

1шт.

PH15V00009R410

REPAIR KIT

Consists Of Ref:4-201 (1), 4-223 (1)

1шт.

PX15V00025R700

REPAIR KIT

Consists Of Ref:4-263 (1), 4-264 (1)

1шт.
