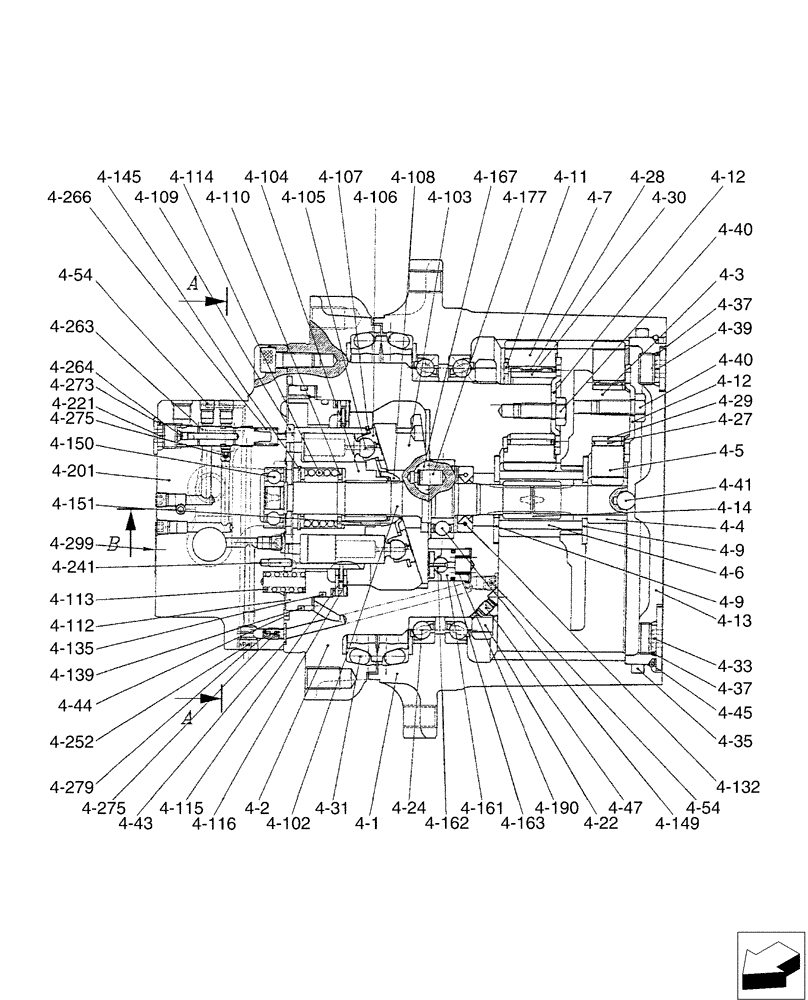

Запчасти Case CX36B (02-003[02]) - MOTOR INSTAL, PROPEL (35) - HYDRAULIC SYSTEMS

4-1

PX15V00025S001

HUB

1шт.

4-2

PX15V00025S002

SPINDLE

1шт.

4-3

PX15V00025S003

HOLDER

1шт.

4-4

PX15V00025S004

GEAR

Sun

1шт.

4-5

PX15V00025S005

GEAR

3шт.

4-6

PX15V00025S006

GEAR

Sun

1шт.

4-7

PX15V00025S007

GEAR

4шт.

4-9

PX15V00025S009

WASHER

2шт.

4-11

PX15V00025S011

WASHER

4шт.

4-12

PX15V00025S012

WASHER

7шт.

4-13

PX15V00025S013

COVER

1шт.

4-14

PX15V00025S014

COUPLING

1шт.

4-22

PX15V00025S022

NUT

1шт.

4-24

PX15V00025S024

BALL BEARING

2шт.

4-27

PX15V00025S027

NEEDLE BEARING

3шт.

4-28

PX15V00025S028

NEEDLE BEARING

4шт.

4-29

PX15V00025S029

RING

3шт.

4-30

PX15V00025S030

RING

4шт.

4-31

NSS

NOT SOLD SEPARAT

Seal, Floating

2шт.

4-33

YT15V00008S033

PLUG

1шт.

4-35

ZD11G17500

O-RING,174.30mm ID x 185.70mm OD x 5.70mm

1шт.

4-37

ZD12P01400

O-RING

3шт.

4-39

YR15V00002S121

PLUG

2шт.

4-40

PX15V00025S040

CAPSCREW

7шт.

4-41

2441U815S26

BALL

1шт.

4-42

PY15V00006S142

PIN

2шт.

4-43

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

2шт.

4-44

PH15V00009S030

O-RING

1шт.

4-45

PX15V00025S045

RING

1шт.

4-47

PX15V00025S047

SET SCREW

2шт.

4-54

PY15V00006S154

PLUG

7шт.

4-102

PX15V00025S102

SHAFT

1шт.

4-103

PX15V00025S103

PLATE

1шт.

4-104

NSS

NOT SOLD SEPARAT

Block

1шт.

4-105

NSS

NOT SOLD SEPARAT

Piston

7шт.

4-106

NSS

NOT SOLD SEPARAT

Shoe

7шт.

4-107

PW15V00018S107

PLATE

1шт.

4-108

2441U831S108

BALL

1шт.

4-109

PX15V00025S109

PLATE

1шт.

4-110

2441U831S110

WASHER

2шт.

4-112

PX15V00025S112

PISTON

1шт.

4-113

PH15V00009S113

SPRING

8шт.

4-114

YJ15V00002S114

SPRING

1шт.

4-115

PX15V00025S115

PLATE

1шт.

4-116

YJ15V00002S116

PLATE

2шт.

4-132

2441U831S132

OIL SEAL

1шт.

4-135

PY15V00005S135

O-RING

1шт.

4-139

PH15V00009S139

O-RING

1шт.

4-145

2441U831S145

RING

Retaining

1шт.

4-149

YJ15V00002S149

BALL BEARING

1шт.

4-150

2441U831S150

BALL BEARING

1шт.

4-151

PH15V00009S151

ROLLER

3шт.

4-161

NSS

NOT SOLD SEPARAT

Piston

1шт.

4-162

NSS

NOT SOLD SEPARAT

Shoe

1шт.

4-163

PX15V00025S163

RING

1шт.

4-167

PY15V00006S167

SPOOL

2шт.

4-177

PH15V00009S177

PIN

2шт.

4-190

PW15V00018S190

SPRING

1шт.

4-201

NSS

NOT SOLD SEPARAT

Flange

1шт.

4-221

2441U995S192

PLUG

2шт.

4-223

NSS

NOT SOLD SEPARAT

Spool

1шт.

4-224

PH15V00009S224

PLUG

2шт.

4-225

PH15V00009S225

SEAT

2шт.

4-226

2441U831S126

PLUG

2шт.

4-227

2441U831S127

VALVE

Check

2шт.

4-228

PH15V00009S228

SPRING

2шт.

4-230

2441U831S130

SPRING

2шт.

4-236

ZD12P02200

O-RING

2шт.

4-237

ZD12P01200

O-RING

2шт.

4-241

2441U815S141

PIN

2шт.

4-243

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

Cap

6шт.

4-252

YX15V00003S146

PLUG

4шт.

4-263

NSS

NOT SOLD SEPARAT

Spool

1шт.

4-264

NSS

NOT SOLD SEPARAT

Stopper

1шт.

4-266

PH15V00009S401

SPRING

1шт.

4-268

PH15V00009S268

BALL

1шт.

4-273

ZD12P01100

O-RING

2шт.

4-275

PH15V00009S275

ORIFICE

4шт.

4-279

YN15V00027S379

FILTER

1шт.

4-280

PH15V00009S280

PLUG

1шт.

4-299

2441U829S199

PLATE

Name

1шт.

PX15V00025R100

REPAIR KIT

Consists Of Ref:4-31 (2)

1шт.

PX15V00025R200

REPAIR KIT

Consists Of Ref:4-104 (1), 4-105 (1), 4-106 (1)

1шт.

PX15V00025R300

REPAIR KIT

Consists Of Ref:4-161 (1), 4-162 (1), 4-163 (1)

1шт.

PX15V00025R400

REPAIR KIT

Consists Of Ref:4-201 (1), 4-223 (1), 4-263 (1), 4-264 (1), 4-266 (1), 4-268 (1), 4-279 (1), 4-280 (1), 4-299 (1)

1шт.

PX15V00025R500

REPAIR KIT

Consists Of Ref:4-221 (2), 4-224 (2), 4-225 (2), 4-226 (2), 4-227 (2), 4-228 (2), 4-230 (2), 4-236 (2), 4-237 (2), 4.273 (2), 4-252 (4), 4-275 (4), 4-56 (6)

1шт.

PH15V00009R410

REPAIR KIT

Consists Of Ref:4-201 (1), 4-223 (1)

1шт.

PX15V00025R700

REPAIR KIT

Consists Of Ref:4-263 (1), 4-264 (1)

1шт.
