(01-064[04]) - CONTROL LINES, PROPEL (NIBBLER AND BREAKER, TRAVEL ALARM) - SN PX15-22269

Запчасти Case CX36B (01-064[04]) - CONTROL LINES, PROPEL (NIBBLER AND BREAKER, TRAVEL ALARM) - SN PX15-22269 (35) - HYDRAULIC SYSTEMS

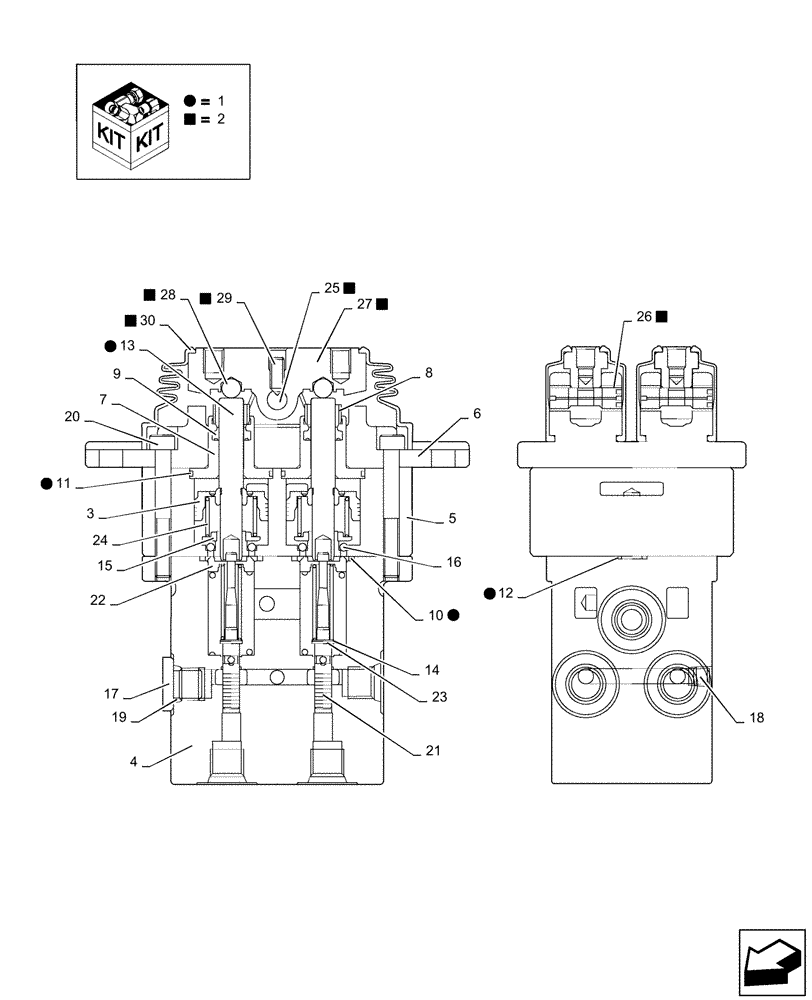

Схема запчастей Case CX36B - (01-064[04]) - CONTROL LINES, PROPEL (NIBBLER AND BREAKER, TRAVEL ALARM) - SN PX15-22269 (35) - HYDRAULIC SYSTEMS
2
9
2
25
19
21
20
2
1
1
2
4
30
15
22
10
2
18
24
8
14
7
2
1
29
16
5
6
23
1
11
28
1
27
26
12
2
13
1
2
3
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Control Lines, Propel, Nibbler and Breaker, Travel Alarm, PW62H00026F1

1шт.

PM30V00019F6

PILOT VALVE

Assembly, Incl 3 - 30

1шт.

1

PM30V00019R100

REPAIR KIT

Incl 13 (1), 10 (4), 11 (4), 12 (4)

1шт.

2

PM30V00019R300

REPAIR KIT

Incl 26 (1), 28 (1), 30 (1), 29 (2)

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

4шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

NSS

NOT SOLD SEPARAT

Body

1шт.

6

PM30V00019S201

COVER

2шт.

7

PM30V00019S202

PLUG

4шт.

8

PM30V00019S203

CAP

4шт.

9

PM30V00019S210

PACKING

4шт.

10

PM30V00019S211

O-RING

4шт.

11

YT30V00009S212

O-RING

4шт.

12

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

2шт.

13

EN30V00045S214

ROD

4шт.

14

EN30V00024S217

SHIM

4шт.

15

PM30V00019S218

SPRING SEAT

4шт.

16

2436U625S232

BALL

12шт.

17

YW30V00001S157

PLUG

3шт.

18

2441U722S490

PLUG

2шт.

19

ZD12P01100

O-RING

3шт.

20

PM30V00019S271

CAPSCREW

4шт.

21

NSS

NOT SOLD SEPARAT

Spool

4шт.

22

EN30V00045S311

SEAT

4шт.

23

EN30V00024S313

WASHER

4шт.

24

PM30V00019S336

SPRING

4шт.

25

NSS

NOT SOLD SEPARAT

Shaft, Incl in 2

2шт.

26

EN30V00045S414

BUSHING

4шт.

27

NSS

NOT SOLD SEPARAT

Cam, Incl in 2

2шт.

28

NSS

NOT SOLD SEPARAT

Ball, Incl in 2

4шт.

29

NSS

NOT SOLD SEPARAT

Set Screw, Incl in 2

2шт.

30

PM30V00019S501

BOOT

Bellows

2шт.
