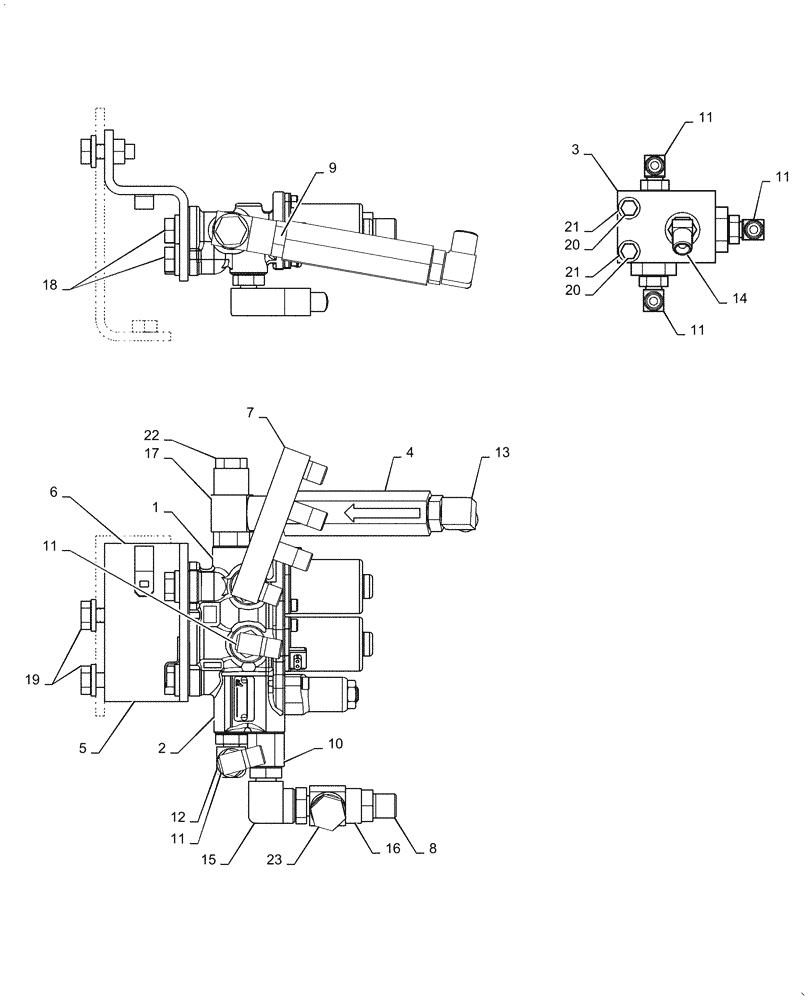

Запчасти Case CX36B (01-063[03]) - CONTROL LINES, VALVE (WITH A PUMP Z PORT) (35) - HYDRAULIC SYSTEMS

.

Control Lines Valve, With A Pump Z Port, PW64H00099F1

1шт.

1

PY35V00009F1

SOLENOID VALVE

Assy, Serial Range: PX15-21105-PX15-22087

1шт.

2

PY35V00010F1

SOLENOID VALVE

Assy, Start Serial: PX15-22088

1шт.

3

PH26V00001F1

VALVE

Shuttle

1шт.

4

YN50V00020F1

HYDRAULIC OIL FILTER

Inline

1шт.

5

PW64H01110P1

BRACKET

, Serial Range: PX15-21105-PX15-21194

1шт.

6

PY64H01062P1

BRACKET

, Start Serial: PX15-21195

1шт.

7

PH64H01057P1

CONNECTION

Connector

1шт.

8

HH25S06006G1

HYD CONNECTOR

2шт.

9

2444Z3326

HYD CONNECTOR

1шт.

10

2444Z2891

HYD CONNECTOR

1шт.

11

HH35S04004G1

90 ELBOW

6шт.

12

2444Z2894

90 ELBOW

1шт.

13

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

14

HH45S04004G1

45 ELBOW

1шт.

15

YT42H01128P1

90 ELBOW

1шт.

16

HH55Q06006G1

TEE

1шт.

17

PW64H01011P1

TEE

1шт.

18

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

19

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

2шт.

20

ZS18C06065

SCREW,Hex, M6 x 65mm

Cap

2шт.

21

ZW16H06000

WASHER

2шт.

22

ZE72X04000

PLUG

2шт.

23

ZE72X06000

PLUG

1шт.
