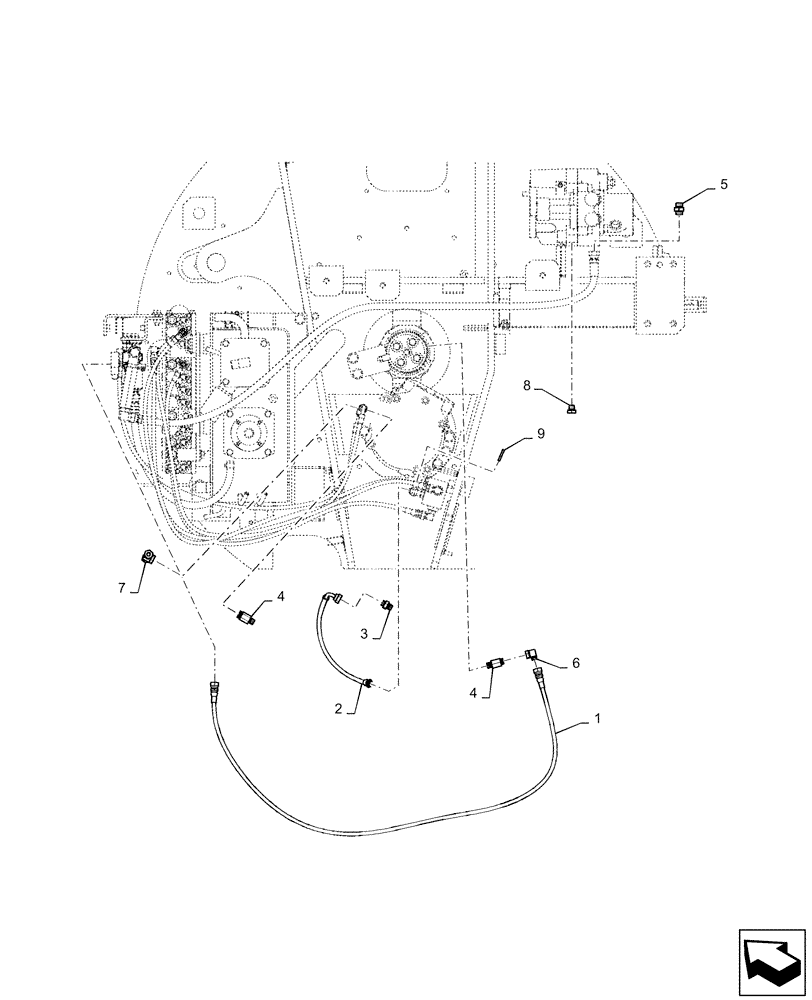

Запчасти Case CX36B (01-063[02]) - CONTROL LINES, VALVE (WITH A PUMP Z PORT) (35) - HYDRAULIC SYSTEMS

.

Control Lines Valve, With A Pump Z Port, PW64H00099F1

1шт.

1

HX23L03145DX

HOSE,4.8mm ID x 1450mm L

1шт.

S/J P-S/V B

1шт.

2

HX33L03040DX

HOSE,4.8mm ID x 400mm L

1шт.

SHUT/V D-S/M SH

1шт.

3

HH25S04004G1

HYD CONNECTOR

1шт.

4

2444Z2525

HYD CONNECTOR

2шт.

5

HH25S06006G1

HYD CONNECTOR

2шт.

6

HH35S04004G1

90 ELBOW

6шт.

7

HH55L04004G2

TEE

1шт.

8

ZE72X04000

PLUG

2шт.

9

PY01P01043D3

CABLE TIE,188mm L

Clip

1шт.

S/J P-S/V B, C/V Pa2 - SHUT/V B

1шт.
