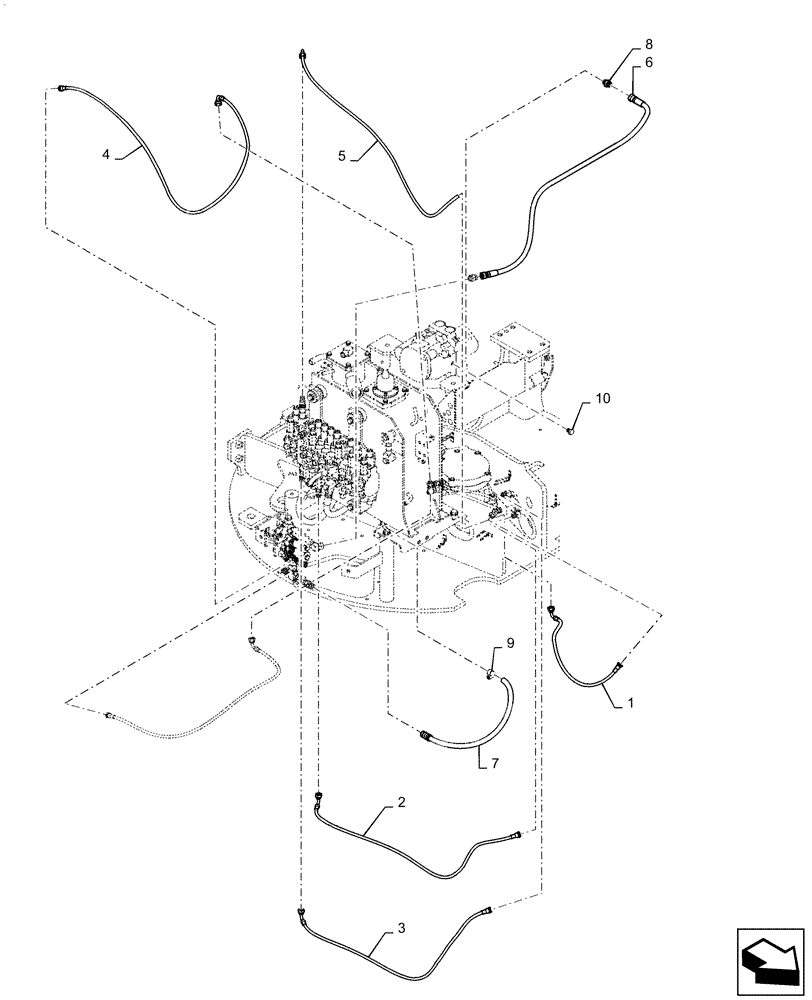

Запчасти Case CX36B (01-063[01]) - CONTROL LINES, VALVE (WITH A PUMP Z PORT) (35) - HYDRAULIC SYSTEMS

.

Control Lines Valve, With A Pump Z Port, PW64H00099F1

1шт.

1

HX33L03040DX

HOSE,4.8mm ID x 400mm L

1шт.

SHUT/V D-S/M SH

1шт.

2

HX33L03110DX

HOSE,4.8mm ID x 1100mm L

2шт.

S/V G - S/M PG, C/V Pa3 - SHUT/V C

1шт.

3

HX33L03120DX

HOSE,4.8mm ID x 1200mm L

1шт.

C/V Pa2-SHUT/V A

1шт.

4

HX33L03135DX

HOSE,4.8mm ID x 1350mm L

1шт.

S/M PG - C/V Pb1

1шт.

5

HX33L03150DX

HOSE

1шт.

C/V Pb2 - SHUT/V B

1шт.

6

HX25L06135DY

HOSE,9.5mm ID x 1350mm L

1шт.

PUMP A4 - S/V P

1шт.

7

PW68H01023D9

HOSE,9.5mm ID x 620mm L

1шт.

S/V T-TANK

1шт.

8

HH25S06006G1

HYD CONNECTOR

2шт.

9

ZC16X01800

CLIP

1шт.

10

ZE72X04000

PLUG

2шт.
