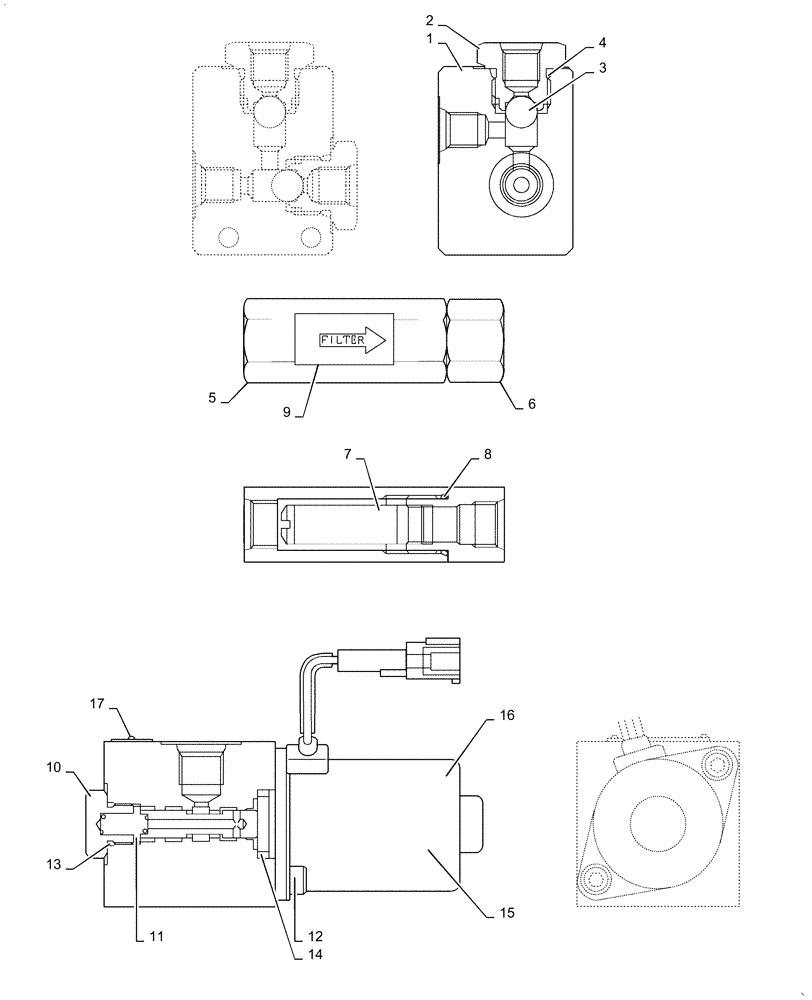

Запчасти Case CX36B (01-061[05]) - CONTROL LINES, VALVE (COOLER) (35) - HYDRAULIC SYSTEMS

.

Control Lines Valve, Cooler, PW64H00098F1

1шт.

.

PH26V00001F1

VALVE

Shuttle, Incl 1 - 9

1шт.

1

PH26V00001S001

BODY

Block

1шт.

2

PH26V00001S002

HYD CONNECTOR

2шт.

3

PH26V00001S003

BALL

2шт.

4

ZD12P01800

O-RING

2шт.

5

YN50V00020S001

Case

1шт.

6

YN50V00020S002

Connector

1шт.

7

YN50V00020S003

Strainer

1шт.

8

ZD12P01800

O-RING

1шт.

9

YN50V00020S005

Label

1шт.

YJ35V00004F2

SOLENOID VALVE

Incl 10 - 17

1шт.

10

2436U2159S3

PLUG

1шт.

11

2436U2802S3

SPRING

1шт.

12

EN35V00004S010

BOLT

2шт.

13

ZD11P01000

O-RING

1шт.

14

ZD11P01600

O-RING

1шт.

15

PY35V00005S005

SOLENOID

Valve, Serial Range: PX15-21105-PX15-21814

1шт.

16

PY35V00009S007

SOLENOID

, Start Serial: PX15-21815

1шт.

17

YN30V00080S023

SCREW

, Start Serial: PX15-21815

2шт.
