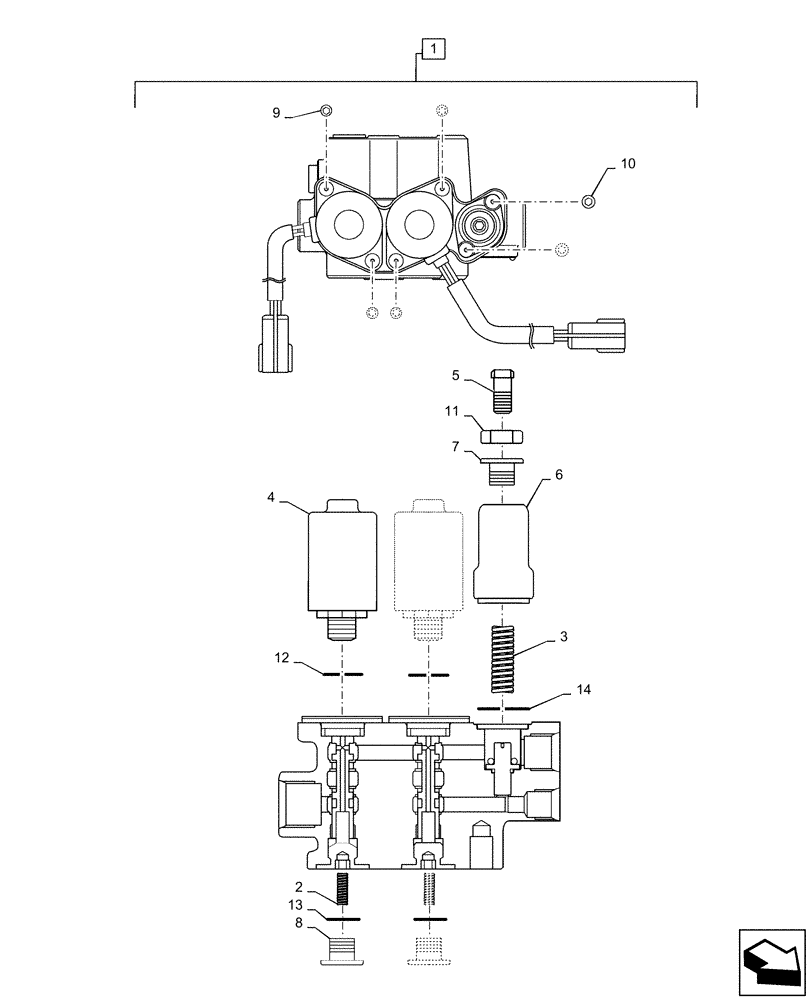

Запчасти Case CX36B (01-061[03]) - CONTROL LINES, VALVE (COOLER) (35) - HYDRAULIC SYSTEMS

.

Control Lines Valve, Cooler, PW64H00098F1

1шт.

1

PY35V00009F1

SOLENOID VALVE

Assy, Incl 2 - 14 , Serial Range: PX15-21105-PX15-22087

1шт.

2

2436U2802S3

SPRING

2шт.

3

PY35V00009S005

SPRING

1шт.

4

PY35V00009S007

SOLENOID

2шт.

5

PY35V00009S008

SCREW

1шт.

6

PY35V00009S009

COVER

1шт.

7

PY35V00009S010

PLUG

1шт.

8

LC35V00004S007

PLUG

2шт.

9

LC35V00004S008

SCREW

Cap

4шт.

10

PY35V00009S014

SCREW

Cap

2шт.

11

PY35V00009S015

NUT

1шт.

12

ZD11P01600

O-RING

2шт.

13

ZD12P01100

O-RING

3шт.

14

PY35V00009S019

O-RING

1шт.
