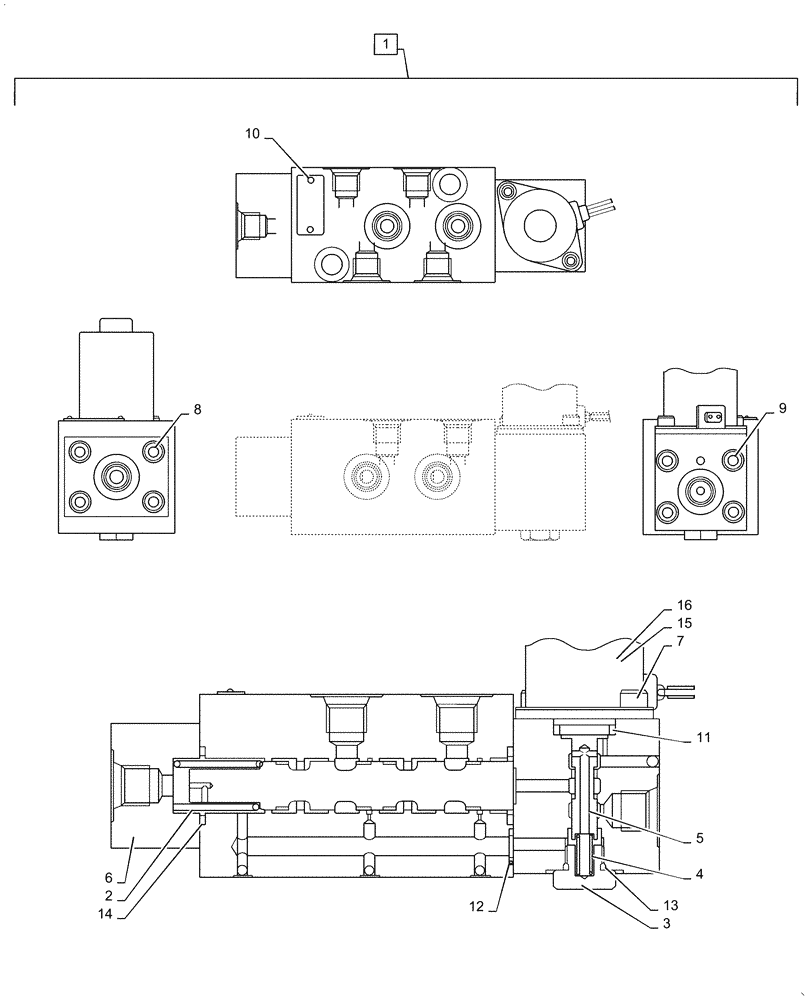

Запчасти Case CX36B (01-060[02]) - CONTROL LINES, VALVE (ANGLE DOZER) (35) - HYDRAULIC SYSTEMS

.

Control Lines, Valve, Angle Dozer, PW64H00083F1

1шт.

1

PE35V00001F2

SOLENOID VALVE

Incl 2 - 16

1шт.

2

PE35V00001S001

SPRING

1шт.

3

2436U2159S3

PLUG

1шт.

4

2436U2802S3

SPRING

1шт.

5

YN35V00010S004

SPOOL

1шт.

6

YR35V00009S008

COVER

1шт.

7

EN35V00004S010

BOLT

2шт.

8

ZS23C06030

SCREW,Hex Socket Head, M6 x 30mm

Cap

4шт.

9

ZS23C06050

CAPSCREW,Hex Socket Head, M6 x 50mm

4шт.

10

YN30V00080S023

SCREW

2шт.

11

ZD11P01600

O-RING

1шт.

12

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

1шт.

13

ZD12P01000

O-RING

1шт.

14

ZD12P02100

O-RING,2.4mm Thk x 20.8mm ID, 90 Duro

2шт.

15

PY35V00005S005

SOLENOID

Valve, Serial Range: PX15-21105-PX15-21767

1шт.

16

PY35V00009S007

SOLENOID

, Start Serial: PX15-21768

1шт.
