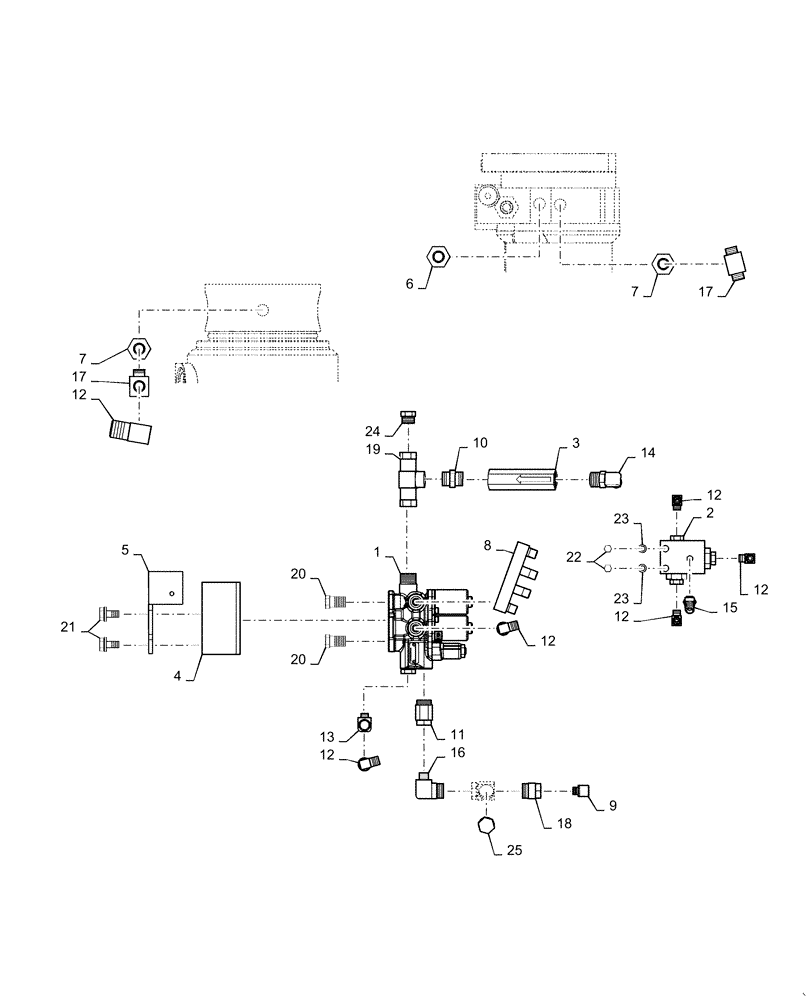

Запчасти Case CX36B (01-058[02]) - CONTROL LINES, VALVE (35) - HYDRAULIC SYSTEMS

.

Control Lines Valve, PW64H00096F1

1шт.

1

PY35V00009F1

SOLENOID VALVE

Assy, Serial Range: PX15-21105-PX15-22087

1шт.

1

PY35V00010F1

SOLENOID VALVE

Assy, Start Serial: PX15-22088

1шт.

2

PH26V00001F1

VALVE

Shuttle

1шт.

3

YN50V00020F1

HYDRAULIC OIL FILTER

Inline

1шт.

4

PW64H01110P1

BRACKET

, Serial Range: PX15-21105-PX15-21194

1шт.

5

PY64H01062P1

BRACKET

, Start Serial: PX15-21195

1шт.

6

HH25S04004G1

HYD CONNECTOR

1шт.

7

2444Z2525

HYD CONNECTOR

2шт.

8

PH64H01057P1

CONNECTION

1шт.

9

HH25S06006G1

HYD CONNECTOR

2шт.

10

2444Z3326

HYD CONNECTOR

1шт.

11

2444Z2891

HYD CONNECTOR

1шт.

12

HH35S04004G1

90 ELBOW

6шт.

13

2444Z2894

90 ELBOW

1шт.

14

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

15

HH45S04004G1

45 ELBOW

1шт.

16

YT42H01128P1

90 ELBOW

1шт.

17

HH55L04004G2

TEE

1шт.

18

HH55Q06006G1

TEE

1шт.

19

PW64H01011P1

TEE

1шт.

20

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

21

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

2шт.

22

ZS18C06065

SCREW,Hex, M6 x 65mm

Cap

2шт.

23

ZW16H06000

WASHER

2шт.

24

ZE72X04000

PLUG

1шт.

25

ZE72X06000

PLUG

1шт.
