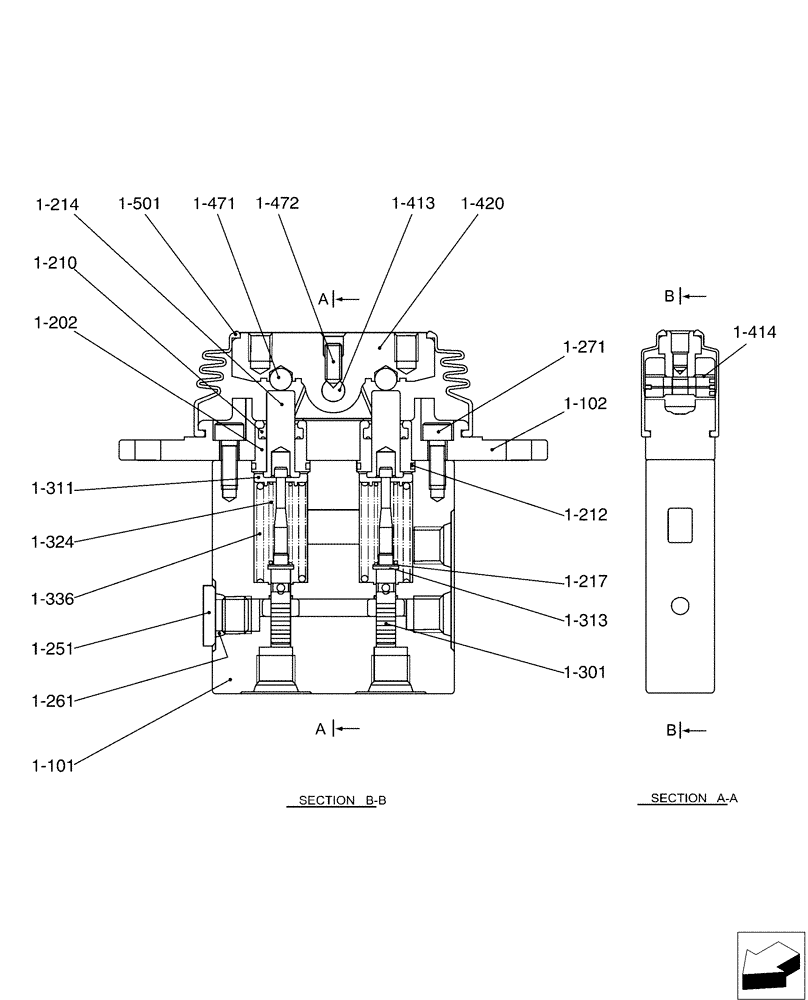

Запчасти Case CX36B (01-057[02]) - CONTROL LINES, REMOTE - ANGLE DOZER (35) - HYDRAULIC SYSTEMS

PB30V00002F2

PILOT VALVE

Incl 1-101 - 1-501

1шт.

1-101

NSS

NOT SOLD SEPARAT

Case

1шт.

1-102

NSS

NOT SOLD SEPARAT

Cover

1шт.

1-202

PB30V00002S202

PLUG

2шт.

1-210

PM30V00019S210

PACKING

2шт.

1-212

2436U2946S9

O-RING,13.5mm ID x 20.5mm OD x 1mm Thk

2шт.

1-214

NSS

NOT SOLD SEPARAT

Rod

2шт.

1-217

NSS

NOT SOLD SEPARAT

Shim

2шт.

1-251

YW30V00001S157

PLUG

1шт.

1-261

ZD12P01100

O-RING

1шт.

1-271

ZS23C06016

SCREW,Hex Socket Head, M6 x 16mm

Cap

2шт.

1-301

NSS

NOT SOLD SEPARAT

Spool

2шт.

1-311

NSS

NOT SOLD SEPARAT

Seat

2шт.

1-313

NSS

NOT SOLD SEPARAT

Washer

2шт.

1-324

NSS

NOT SOLD SEPARAT

Spring

2шт.

1-336

NSS

NOT SOLD SEPARAT

Spring

2шт.

1-413

NSS

NOT SOLD SEPARAT

Shaft

1шт.

1-414

NSS

NOT SOLD SEPARAT

Bushing

2шт.

1-420

NSS

NOT SOLD SEPARAT

Cam

1шт.

1-471

NSS

NOT SOLD SEPARAT

Ball

2шт.

1-472

NSS

NOT SOLD SEPARAT

Setscrew

1шт.

1-501

NSS

NOT SOLD SEPARAT

Bellows

1шт.

PB30V00002R100

REPAIR KIT

Consists Of Ref:1-413 (1), 1-420 (1), 1-472 (1), 1-471 (2)

1шт.
