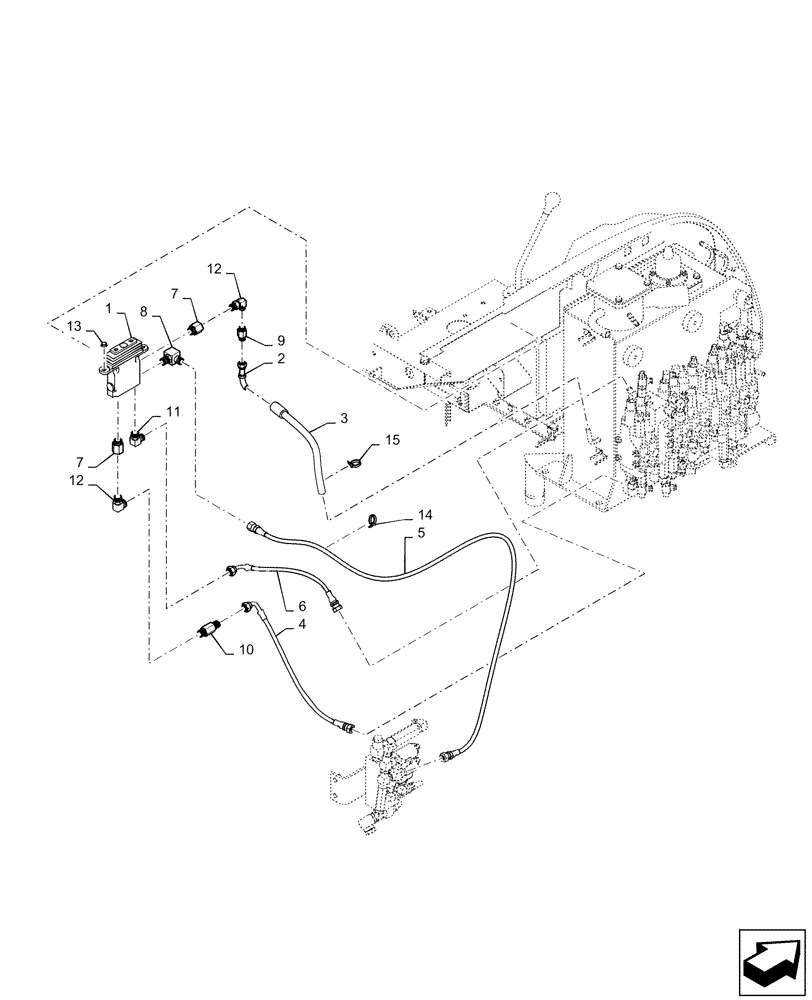

Запчасти Case CX36B (01-055[01]) - CONTROL LINES, REMOTE (DOZER) (35) - HYDRAULIC SYSTEMS

.

Control Lines, Remote, Dozer, PW68H00043F1

1шт.

1

PB30V00002F2

PILOT VALVE

1шт.

2

PW68H01024D3

HOSE

, Serial Range: PX15-21105-PX15-21546

1шт.

PF 3/8, P/V T-TANK

1шт.

3

PW68H01024D1

HOSE

, Start Serial: PX15-21547

1шт.

PF 3/8

1шт.

4

HX33L03042DX

HOSE,4.8mm ID x 420mm L

1шт.

P/V 1-C/V Pa1

1шт.

5

HX24L04180DX

HOSE ASSY.

1шт.

S/V A2-P/V P

1шт.

6

HX33L03038DX

HOSE

1шт.

P/V 2-C/V Pb1

1шт.

7

2444Z2525

HYD CONNECTOR

2шт.

8

HH35S04004G2

90 ELBOW

1шт.

9

HH25S06004G3

HYD CONNECTOR

1шт.

10

PU64H01002P1

HYD CONNECTOR

Connector

1шт.

11

HH35S04004G1

90 ELBOW

1шт.

12

2444Z2894

90 ELBOW

Elbow

2шт.

13

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

2шт.

14

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.

15

ZC16X01800

CLIP

1шт.
