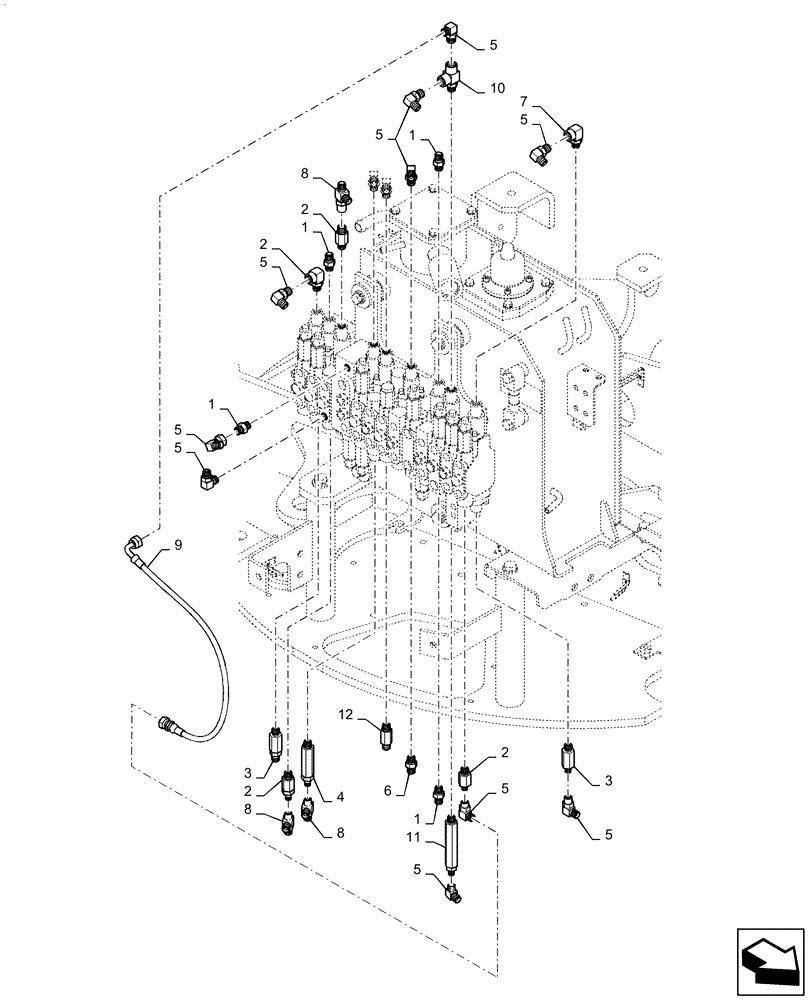

Запчасти Case CX36B (01-053[01]) - CONTROL LINES, MAIN (ANGLE DOZER) (35) - HYDRAULIC SYSTEMS

.

Control Lines, Main, Angle Dozer, PW06H00021F1

1шт.

1

HH25S04004G1

HYD CONNECTOR

, Serial Range: PX15-21105-PX15-22322

6шт.

1

HH25S04004G1

HYD CONNECTOR

, Start Serial: PX15-22323

5шт.

2

2444Z2525

HYD CONNECTOR

3шт.

3

2444T2524D2

HYD CONNECTOR

, Serial Range: PX15-21105-PX15-22322

2шт.

3

2444T2524D2

HYD CONNECTOR

, Start Serial: PX15-22323

1шт.

4

HH25R04004G3

CONNECTION

1шт.

5

HH35S04004G1

90 ELBOW

11шт.

6

PM12H01001P1

ELBOW

1шт.

7

2444Z2894

90 ELBOW

Elbow

2шт.

8

HH55L04004G1

TEE

3шт.

9

HX33L03064DX

HOSE,4.8mm ID x 640mm L

1шт.

C/V Pb8-C/V Pb8'

1шт.

10

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

11

2444T2611

HYD CONNECTOR

1шт.

12

PU64H01002P1

HYD CONNECTOR

Connector, Serial Range: PX15-21105-PX15-22322

1шт.

12

PU64H01002P1

HYD CONNECTOR

Connector, Start Serial: PX15-22323

2шт.
