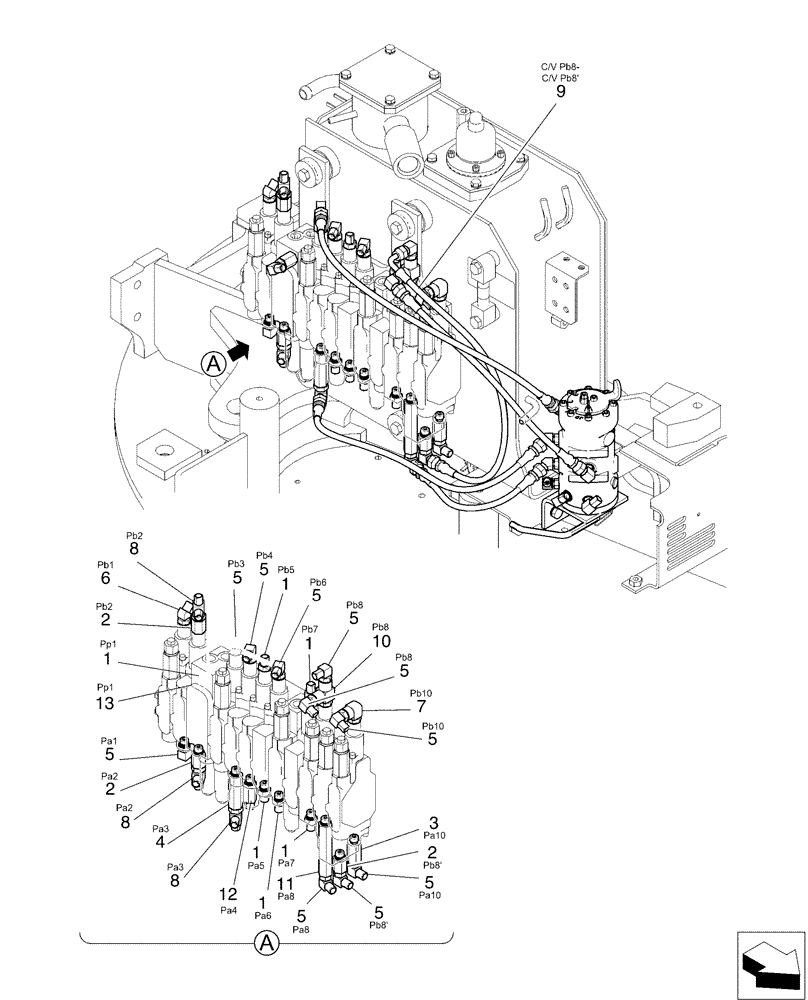

Запчасти Case CX36B (01-052[00]) - CONTROL LINES, MAIN - J/D MULTI (35) - HYDRAULIC SYSTEMS

PW06H00008F1

Main (J/D Multi)

1шт.

1

HH25S04004G1

HYD CONNECTOR

4шт.

2

2444Z2525

HYD CONNECTOR

3шт.

3

2444T2524D2

HYD CONNECTOR

1шт.

4

HH25R04004G3

CONNECTION

1шт.

5

HH35S04004G1

90 ELBOW

10шт.

6

HH45S04004G1

45 ELBOW

1шт.

7

2444Z2894

90 ELBOW

Elbow

1шт.

8

HH55L04004G1

TEE

3шт.

9

HX33L03064DX

HOSE,4.8mm ID x 640mm L

1шт.

10

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

11

2444T2611

HYD CONNECTOR

1шт.

12

PU64H01002P1

HYD CONNECTOR

Connector

1шт.

13

PM12H01001P1

ELBOW

1шт.
