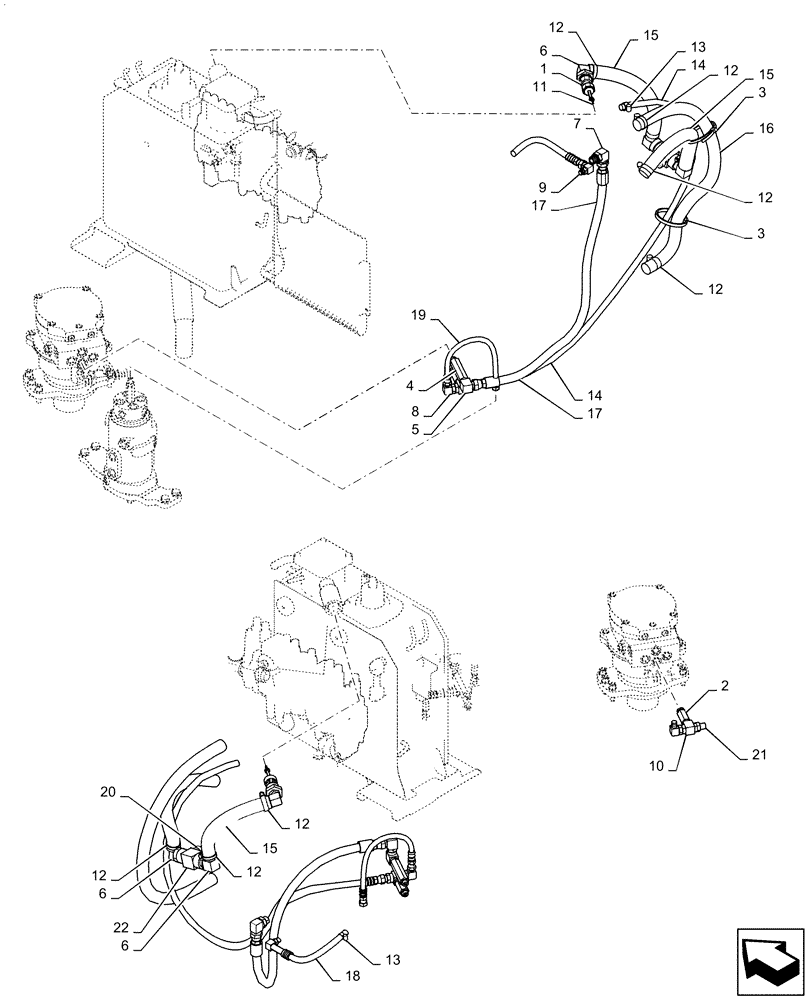

Запчасти Case CX36B (01-041[01]) - HYD LINES, RETURN (35) - HYDRAULIC SYSTEMS

.

Hydraulic Lines, Return PW32H00012F1

1шт.

1

HH25R16008G2

HYD CONNECTOR

1шт.

2

2444Z3711

HYD CONNECTOR

, Serial Range: PX15-21105-PX15-22445

1шт.

2

2444T3952

HYD CONNECTOR

, Start Serial: PX15-22446

1шт.

3

PY01P01043D8

CABLE TIE,102mm L

2шт.

4

HH25R06006G4

HYD CONNECTOR

1шт.

5

HH35S08006G1

90 ELBOW

1шт.

6

YJ32H01035P1

90 ELBOW

3шт.

7

HH35S08008G1

90 ELBOW

1шт.

8

HH35S04006G1

90 ELBOW,90 Degree, 1/4" PF x 3/8" PF x 60mm L

, Serial Range: PX15-21105-PX15-22379

1шт.

8

HH25S04006G1

90 ELBOW

, Start Serial: PX15-22380

1шт.

9

HH35S06004G1

90 ELBOW

1шт.

10

YN64H01048P1

TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring

1шт.

11

PW21V00003F1

VALVE

Assy

1шт.

12

ZC16X02800

CLIP

6шт.

13

ZC16X01800

CLIP

2шт.

14

PW68H01023D4

HOSE,9.5mm ID x 1450mm L

1шт.

S/M DB-TANK

1шт.

15

PW32H01026D4

HOSE,19mm ID x 350mm L

2шт.

0.6 Kg/m, C/V T1-Tank, C/V T1-O/C IN

1шт.

16

PW32H01026D3

HOSE,19mm ID x 790mm L

1шт.

0.6 Kg/m, O/C Out-Tank

1шт.

17

HX22L08100DX

HOSE,12.7mm ID x 1000mm L

1шт.

C/V T2-S/M M

1шт.

18

PW68H01023D1

HOSE,9.5mm ID x 250mm L

1шт.

19

HX22L04040DY

HOSE,6.3mm ID x 400mm L

, Serial Range: PX15-21105-PX15-22379

1шт.

19

HX32L04040DX

FLEXIBLE HOSE

, Start Serial: PX15-22380

1шт.

S/M DB-S/J G

1шт.

20

2444Z3713

HYD CONNECTOR

1шт.

21

HH25S06006G1

HYD CONNECTOR

1шт.

22

PY30H01008P1

TEE,PF 1/2" x PF 1/2"

1шт.
