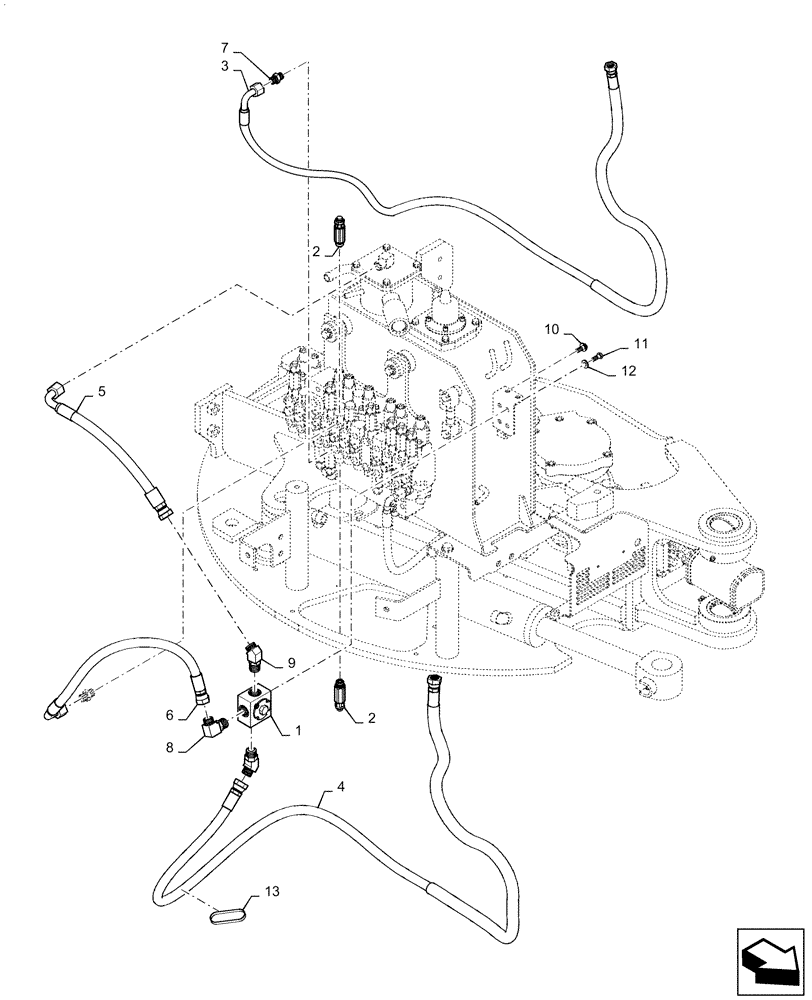

Запчасти Case CX36B (01-037[01]) - HYD LINES, UPPER (NIBBLER AND BREAKER) (35) - HYDRAULIC SYSTEMS

.

Hydraulic Lines, Upper, Nibbler and Breaker, PW03H00044F1

1шт.

1

PA30V00005F1

VALVE

Selector

1шт.

2

PM22V00005F3

VALVE PRESSURE RELIE

2шт.

3

PW03H01129D2

HYDRAULIC HOSE

1шт.

C/V A4 - N and B

1шт.

4

PW03H01130D2

HYDRAULIC HOSE

1шт.

SEL/V- N and B (H)

1шт.

5

HX32L08042DX

HOSE,12.7mm ID x 420mm L

1шт.

SEL/V-TANK

1шт.

6

HX35L08060DX

HOSE

1шт.

C/V B4 - SEL/V

1шт.

7

HH25S08006G2

HYD CONNECTOR

2шт.

8

HH35S08006G1

90 ELBOW

1шт.

9

HH45S08006G1

45 ELBOW

2шт.

10

ZS18C08020

SCREW,Hex, M8 x 20mm

Cap, Serial Range: PX15-21105-PX15-21613

4шт.

11

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems, Start Serial: PX15-21614

4шт.

12

ZW16H08000

WASHER

, Serial Range: PX15-21105-PX15-21613

4шт.

13

PY01P01043D8

CABLE TIE,102mm L

1шт.
