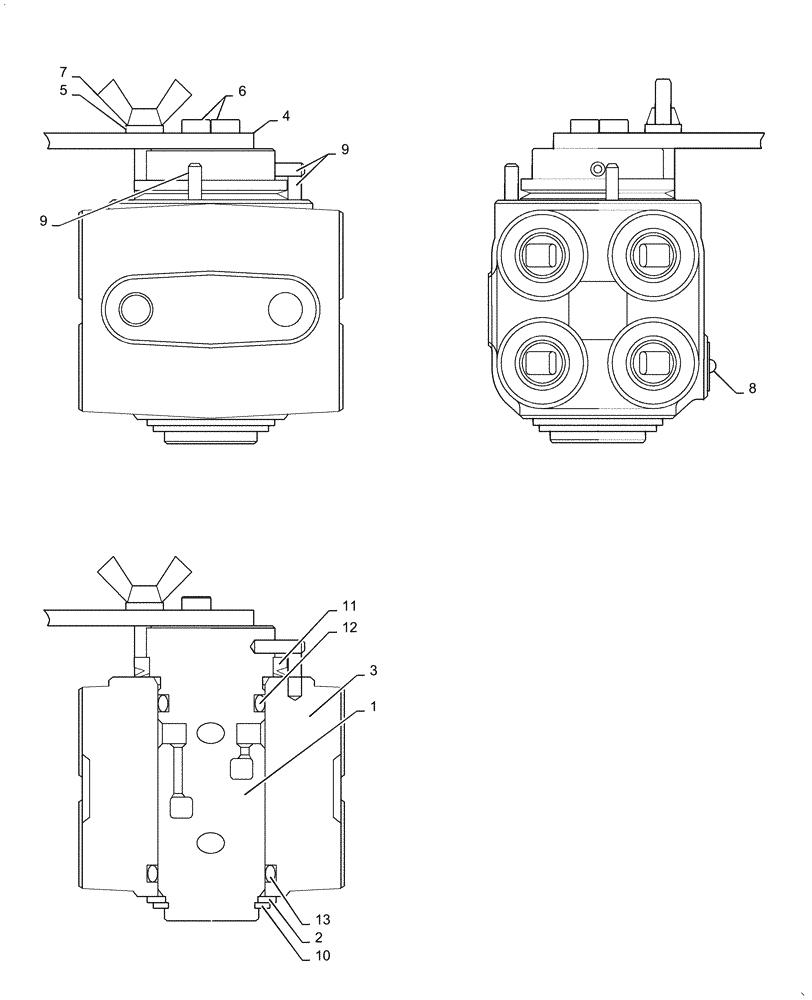

Запчасти Case CX36B (01-034[04]) - VALVE INSTALL (BHL MULTI) - SN PX15-21962 (35) - HYDRAULIC SYSTEMS

.

Valve Install, BHL Multi, PW64H00104F1

1шт.

.

PY30V00065F1

VALVE

Assy, Incl 1 - 13

1шт.

1

PY30V00065S002

SHAFT

1шт.

2

YN30V00115S006

WASHER

1шт.

3

PY30V00065S004

HOUSING

1шт.

4

PY30V00065S005

LEVER

1шт.

5

PY30V00065S006

WASHER

1шт.

6

YN30V00115S008

SCREW

Cap

2шт.

7

YN30V00115S009

BOLT

1шт.

8

YN30V00080S023

SCREW

2шт.

9

YN30V00115S011

PIN

Spring

3шт.

10

PY30V00065S012

RING

1шт.

11

YN30V00115S013

SEAL

Dust

1шт.

12

ZD11P02600

O-RING

1шт.

13

YN30V00115S015

O-RING

1шт.
