(07-019[02]) - MOTOR ASSY (PROPELLING)

Запчасти Case CX36B (07-019[02]) - MOTOR ASSY (PROPELLING) (35) - HYDRAULIC SYSTEMS

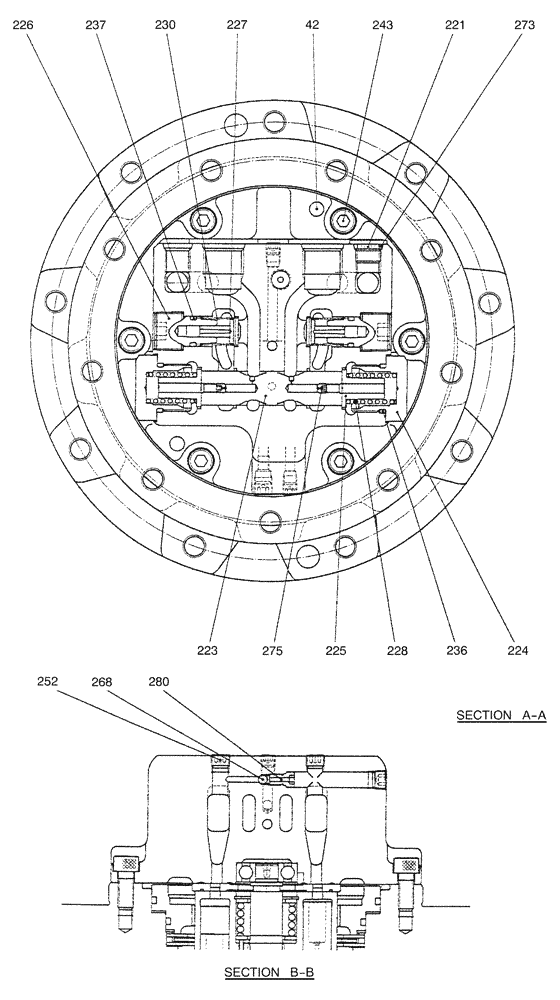

Схема запчастей Case CX36B - (07-019[02]) - MOTOR ASSY (PROPELLING) (35) - HYDRAULIC SYSTEMS
226
42
252
223
268
224
273
237
228
243
221
280
227
225
230
275
236
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

42

PY15V00006S142

PIN

2шт.

221

2441U995S192

PLUG

1шт.

223

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

224

PH15V00009S224

PLUG

2шт.

225

PH15V00009S225

SEAT

2шт.

226

2441U831S126

PLUG

2шт.

227

2441U831S127

VALVE

2шт.

228

PH15V00009S228

SPRING

2шт.

230

2441U831S130

SPRING

2шт.

236

ZD12P02200

O-RING

2шт.

237

ZD12P01200

O-RING

2шт.

243

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

6шт.

252

YX15V00003S146

PLUG

3шт.

268

PH15V00009S268

BALL

1шт.

273

ZD12P01100

O-RING

1шт.

275

PH15V00009S275

ORIFICE

2шт.

280

PH15V00009S280

PLUG

1шт.

PX15V00025R100

REPAIR KIT

(CONSISTS OF REF. 31X2)

1шт.

PX15V00025R200

REPAIR KIT

(CONSISTS OF REF. 104X1, 105X7, 106X7)

1шт.

PX15V00025R300

REPAIR KIT

(CONSISTS OF REF. 161X1, 162X1, 163X1)

1шт.

PX15V00025R400

REPAIR KIT

(CONSISTS OF REF. 54X7, 201X1, 221X2, 223X1, 224X2, 225X2, 226X2, 227X2, 228X2, 230X2, 236X2, 237X2, 252X4, 263X1, 264X1, 266X1, 268X1, 273X2, 275X4, 279X1, 280X1, 299X)

1шт.

PX15V00025R500

REPAIR KIT

(CONSISTS OF REF. 201X1, 223X1)

1шт.

PH15V00009R410

REPAIR KIT

(CONSISTS OF REF. 263X1, 264X1)

1шт.

PX15V00025R700

REPAIR KIT

(CONSISTS OF REF. 31X2, 35X1, 37X3, 43X2, 44X1, 132X1, 135X1, 139X1, 236X2, 237X2, 273X2)

1шт.
