Запчасти Case CX36B (05-008[01]) - CONTROL LINES, REMOTE, P/N PW62H00008F1 (35) - HYDRAULIC SYSTEMS

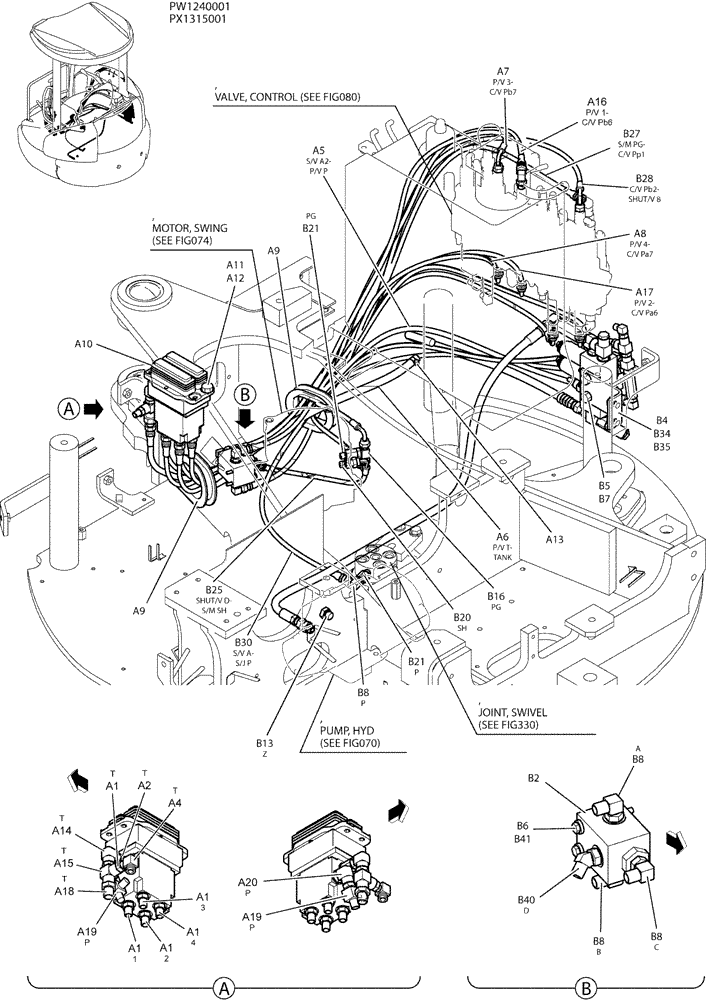

Схема запчастей Case CX36B - (05-008[01]) - CONTROL LINES, REMOTE, P/N PW62H00008F1 (35) - HYDRAULIC SYSTEMS
b8
a10
a6
a7
a1
a1
a13
1a8
b27
b7
b28
a5
b4
a15
a12
b40
b21
b25
b34
a9
b6
a2
b41
b8
b8
a8
a14
b30
b16
b2
a4
a17
a1
a19
b21
b35
b20
a11
a19
b13
b5
a1
a20
a16
a9
a1
b8

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

CONTROL LINES, REMOTE

1шт.

PW62H00008F1

CONTROL LINES, PROPEL

1шт.

a1

HH25S04004G1

HYD CONNECTOR

4шт.

a2

2444Z2525

HYD CONNECTOR

1шт.

a4

HH35S04004G1

90 ELBOW

1шт.

a5

HX24L04145DX

HOSE,6.3mm ID x 1450mm L

1шт.

a6

PW68H01023DA

HOSE,9.5mm ID x 800mm L

1шт.

a7

HX33L03150DX

HOSE

1шт.

a8

HX33L03125DX

HOSE,4.8mm ID x 1250mm L

1шт.

a9

PW62H01001P1

GROMMET

2шт.

a10

PM30V00019F1

PILOT VALVE

ASSY

1шт.

SEE (C.P.M)

1шт.

a11

ZS18C08025

SCREW,Hex, M8 x 25mm

CAP

4шт.

a12

ZW16H08000

WASHER

4шт.

a13

ZC16X01800

CLIP

1шт.

a14

2444Z2894

90 ELBOW

1шт.

a15

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

a16

HX23L03160DX

HOSE

HOSE

1шт.

a17

HX33L03135DX

HOSE,4.8mm ID x 1350mm L

1шт.

a18

HH25S06004G1

HYD CONNECTOR

1шт.

a19

HH55L04004G1

TEE

1шт.

a20

PH62H01003P1

ELBOW

1шт.

PW64H00069F1

CONTROL LINES, VALVE

1шт.

b2

PH26V00001F1

VALVE

ASSY, SHUTTLE

1шт.

b4

PW64H01072P1

BRACKET

BRACKET

1шт.

b5

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

b6

ZS18C06065

SCREW,Hex, M6 x 65mm

CAP

2шт.

b7

ZW16H08000

WASHER

2шт.

b8

HH35S04004G1

90 ELBOW

4шт.

b13

ZE72X04000

PLUG

1шт.

b16

HH55L04004G2

TEE

1шт.

b20

HH25S04004G1

HYD CONNECTOR

1шт.

b21

2444Z2525

HYD CONNECTOR

2шт.

b25

HX33L03040DX

HOSE,4.8mm ID x 400mm L

1шт.

b27

HX33L03135DX

HOSE,4.8mm ID x 1350mm L

1шт.

b28

HX33L03145DX

HOSE,4.8mm ID x 1450mm L

1шт.

b30

HX23L03140DX

HOSE,4.8mm ID x 1400mm L

1шт.

b34

ZS18C10030

SCREW,Hex, M10 x 30mm

CAP

2шт.

b35

ZW16H10000

WASHER

2шт.

b40

HH45S04004G1

45 ELBOW

1шт.

b41

ZW16H06000

WASHER

2шт.

Выбрано товаров: 41
