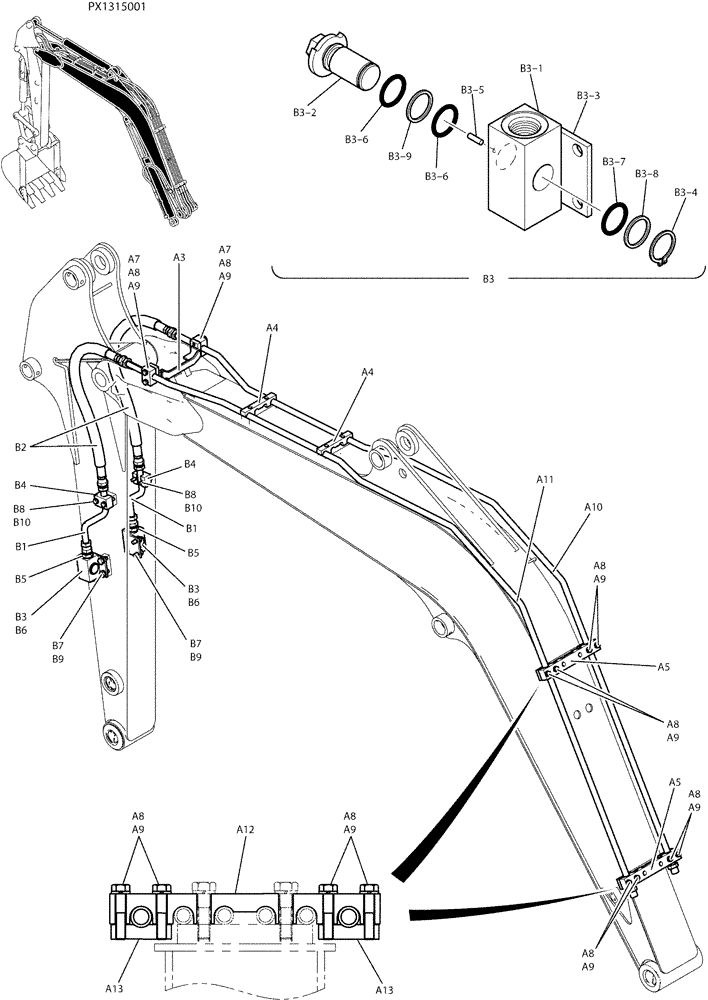

Запчасти Case CX36B (03-003) - HYD LINES, BOOM 2.5M (NIBBLER & BREAKER) (35) - HYDRAULIC SYSTEMS

PX42H00059F1

HYD LINES, BOOM

1шт.

a3

PX42H01136P1

BRACKET

1шт.

a4

PX42H01080P1

CLAMP

2шт.

a7

PX43H01017P1

CLAMP

2шт.

a8

ZS18C08040

SCREW,Hex, M8 x 40mm

CAP

12шт.

a9

ZW26X08000

LOCK WASHER

12шт.

a10

PX42H01173P1

TUBE

TUBE

1шт.

a11

PX42H01174P1

TUBE

TUBE

1шт.

a12

PX42H01165P1

CLAMP

CLAMP

2шт.

a13

PX42H01175P1

CLAMP

CLAMP

4шт.

PX43H00017F1

HYD LINES, ARM

1шт.

b1

PX43H01015P1

TUBE

TUBE

2шт.

b2

HX55L08070DY

HOSE,12.7mm ID x 700mm L

2шт.

b3

PF25V00001F2

VALVE

2шт.

b3-1

PF25V00001S001

BODY

Valve, (with 1/2" Pipe Thread)

1шт.

b3-2

PF25V00001S002

SHAFT

1шт.

b3-3

PF25V00001S003

PLATE

1шт.

b3-4

ZR16X03000

SNAP RING

1шт.

b3-5

ZP26D05010

PIN

1шт.

b3-6

ZD12G02500

O-RING,24.40mm ID x 30.60mm OD x 3.10mm

2шт.

b3-7

ZD12G03000

O-RING,29.40mm ID x 35.60mm OD x 3.10mm

1шт.

b3-8

ZD75G03000

BACK-UP RING

1шт.

b3-9

ZD75G02500

BACK-UP RING

1шт.

b4

PX43H01017P1

CLAMP

2шт.

b5

HH25S08008G1

HYD CONNECTOR

2шт.

b6

ZE72X08000

PLUG

2шт.

b7

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

4шт.

b8

ZS18C08040

SCREW,Hex, M8 x 40mm

CAP

4шт.

b9

ZW26X10000

LOCK WASHER

4шт.

b10

ZW26X08000

LOCK WASHER

4шт.
