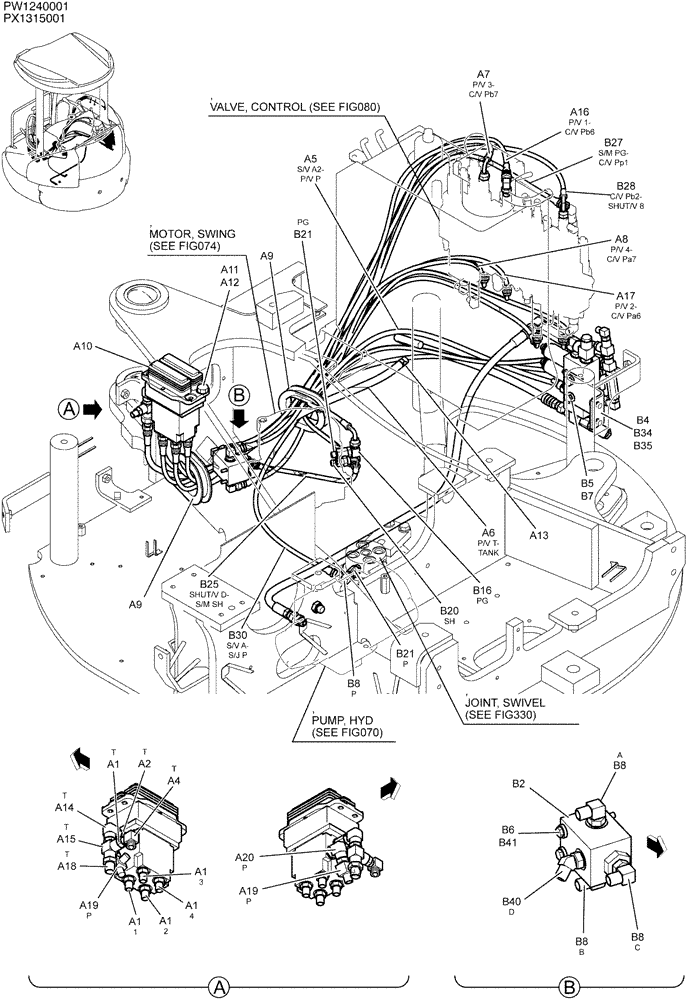

Запчасти Case CX36B (01-034[01]) - CONTROL LINES, REMOTE, P/N PW62H00008F1 (35) - HYDRAULIC SYSTEMS

PW62H00008F1

CONTROL LINES, PROPEL

1шт.

a1

HH25S04004G1

HYD CONNECTOR

4шт.

a2

2444Z2525

HYD CONNECTOR

1шт.

a4

HH35S04004G1

90 ELBOW

1шт.

a5

HX24L04145DX

HOSE,6.3mm ID x 1450mm L

1шт.

a6

PW68H01023DA

HOSE,9.5mm ID x 800mm L

1шт.

a7

HX33L03150DX

HOSE

1шт.

a8

HX33L03125DX

HOSE,4.8mm ID x 1250mm L

1шт.

a9

PW62H01001P1

GROMMET

2шт.

a10

PM30V00019F1

PILOT VALVE

1шт.

SEE (C.P.M)

1шт.

a11

ZS18C08025

SCREW,Hex, M8 x 25mm

CAP

4шт.

a12

ZW16H08000

WASHER

4шт.

a13

ZC16X01800

CLIP

1шт.

a14

2444Z2894

90 ELBOW

1шт.

a15

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

a16

HX23L03160DX

HOSE

HOSE

1шт.

a17

HX33L03135DX

HOSE,4.8mm ID x 1350mm L

1шт.

a18

HH25S06004G1

HYD CONNECTOR

1шт.

a19

HH55L04004G1

TEE

1шт.

a20

PH62H01003P1

ELBOW

1шт.

PW64H00043F1

CONTROL LINES, VALVE

1шт.

b2

PH26V00001F1

VALVE

1шт.

b4

PW64H01072P1

BRACKET

1шт.

b5

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

b6

ZS18C06065

SCREW,Hex, M6 x 65mm

CAP

2шт.

b7

ZW16H08000

WASHER

2шт.

b8

HH35S04004G1

90 ELBOW

4шт.

b16

HH55L04004G2

TEE

1шт.

b20

HH25S04004G1

HYD CONNECTOR

1шт.

b21

2444Z2525

HYD CONNECTOR

2шт.

b25

HX33L03040DX

HOSE,4.8mm ID x 400mm L

1шт.

b27

HX33L03135DX

HOSE,4.8mm ID x 1350mm L

1шт.

b28

HX33L03145DX

HOSE,4.8mm ID x 1450mm L

1шт.

b30

HX23L03140DX

HOSE,4.8mm ID x 1400mm L

1шт.

b34

ZS18C10030

SCREW,Hex, M10 x 30mm

CAP

2шт.

b35

ZW16H10000

WASHER

2шт.

b40

HH45S04004G1

45 ELBOW

1шт.

b41

ZW16H06000

WASHER

2шт.
