(01-031[02]) - CONTROL LINES, REMOTE

Запчасти Case CX36B (01-031[02]) - CONTROL LINES, REMOTE (35) - HYDRAULIC SYSTEMS

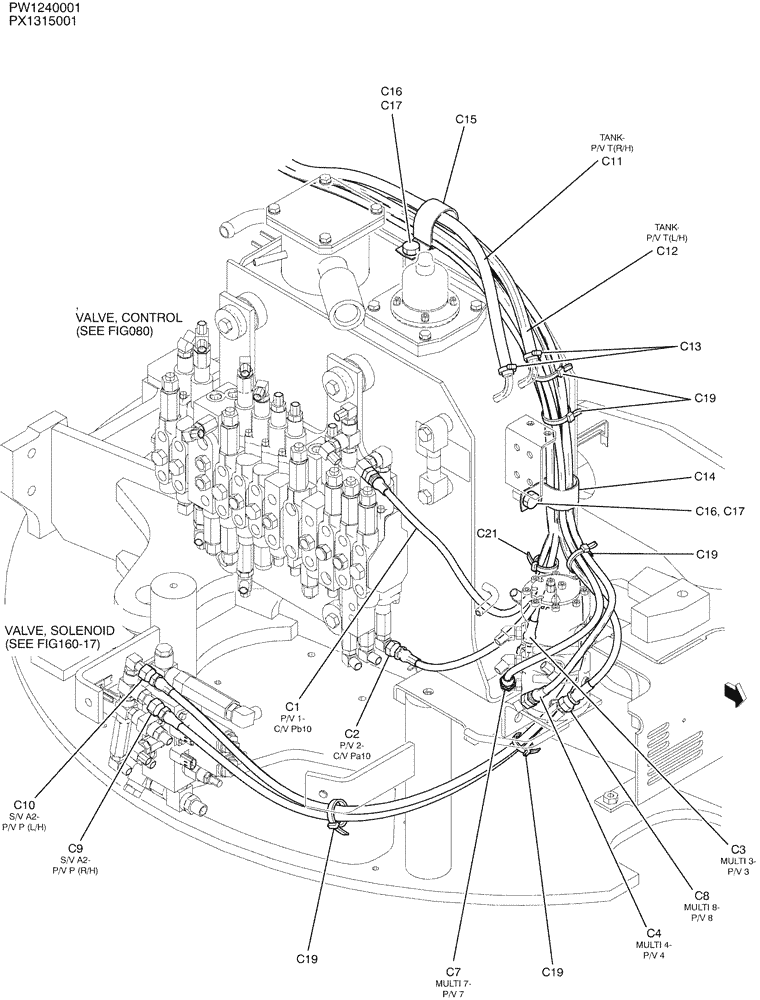

Схема запчастей Case CX36B - (01-031[02]) - CONTROL LINES, REMOTE (35) - HYDRAULIC SYSTEMS
c7
c2
c19
c12
c19
c13
c8
c15
c10
c11
c19
c17
c3
c16
c1
c16
c21
c19
c14
c17
c4
c9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

c1

HX33L03135DR

HOSE,4.8mm ID x 1350mm L

1шт.

c2

HX23L03110DB

HOSE,4.8mm ID x 1100mm L

1шт.

c3

HX33L03105DG

HOSE

1шт.

c4

HX23L03115DH

HOSE

1шт.

c7

HX23L03280DB

HOSE

1шт.

c8

HX23L03270DG

HOSE

1шт.

c9

HX34L04185DX

HOSE,6.3mm ID x 1850mm L

1шт.

c10

HX24L04340DX

HOSE,6.3mm ID x 3400mm L

1шт.

c11

PW68H01023DL

HOSE

1шт.

c12

PW68H01023D5

HOSE,9.5mm ID x 2090mm L

1шт.

c13

ZC16X01800

CLIP

2шт.

c14

ZC46X38014

CLIP

1шт.

c15

ZC46X46014

CLIP

1шт.

c16

ZS18C12020

SCREW,Hex, M12 x 20mm

2шт.

c17

ZW16H12000

WASHER

2шт.

c19

PY01P01043D8

CABLE TIE,102mm L

5шт.

c21

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.
