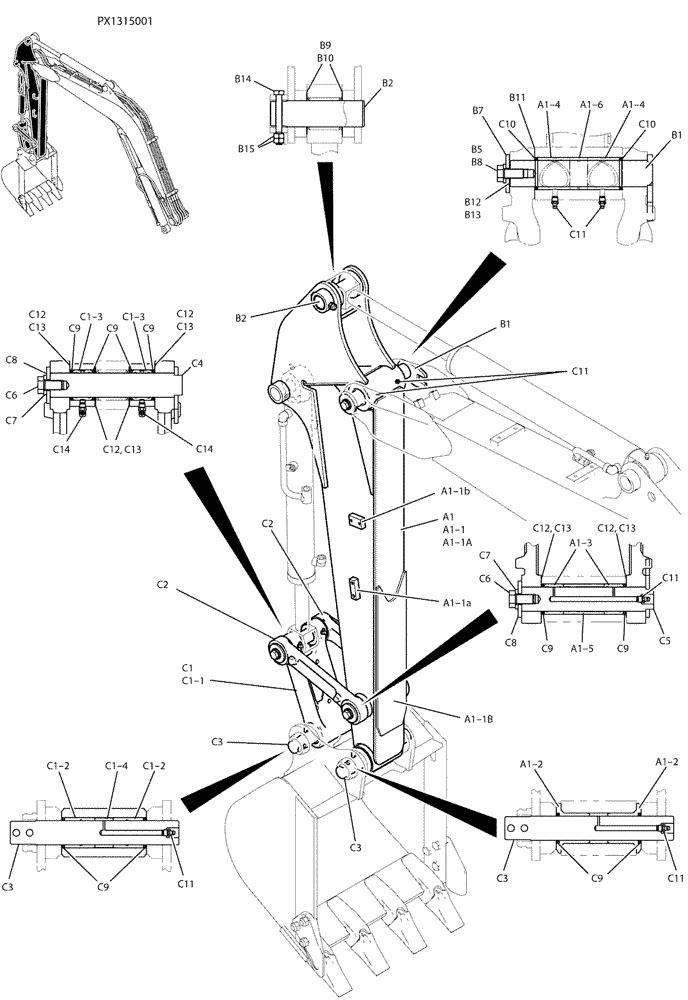

Запчасти Case CX36B (03-007) - ARM ASSY, STD 1.32M (84) - BOOMS, DIPPERS & BUCKETS
№
Артикул
Название
Примечание
Количество
NSS
NOT SOLD SEPARAT
ARM ASSY, STD 1.32M
1шт.
PX12B00092F1
ARM
ASSY
1шт.
a1
PX12B00093F1%C
ARM
Arm Assembly
1шт.
a1-1
NSS
NOT SOLD SEPARAT
ARM
1шт.
a1-1a
NSS
NOT SOLD SEPARAT
ARM
1шт.
a1-1a
PV12B01227P1
BLOCK
2шт.
a1-1b
PX12B01185P1
BLOCK
2шт.
a1-1b
PW12B01277P1
PLATE
1шт.
a1-2
PW12B01237P2
BUSHING,40mm ID x 82mm OD x 55mm L
2шт.
a1-3
PW12B01209P2
BUSHING,45mm ID x 50mm OD x 31.5mm L
2шт.
a1-4
PX12B01177P2
BUSHING,45mm ID x 55mm OD x 55mm L
2шт.
a1-5
PW12B01208D1
COLLAR
1шт.
a1-6
PX12B01016P1
COLLAR
1шт.
PX12B00109F1
ARM INSTAL
1шт.
b1
PX12B01355P1
PIN
1шт.
b2
PX12B01320P1
PIN,45mm OD x 160mm L
1шт.
b3
ZS18C16035
SCREW,Hex, M16 x 35mm
CAP
1шт.
b4
PW12B01242P1
WASHER
1шт.
b5
ZW16H16000
WASHER
1шт.
b6
YJ12B01097P1
SHIM,47mm ID x 70mm OD x 0.5mm Thk
1шт.
b7
PR02B01121D1
SHIM,47mm ID x 70mm OD x 0.9mm Thk
1шт.
b8
PW02B01239P1
SHIM,0.5mm Thk
1шт.
b9
PW12B01243D1
SHIM,0.5mm Thk
1шт.
b10
PW12B01243D2
SHIM,0.9mm Thk
2шт.
b11
HS18C10085G2
BOLT
CAP
1шт.
b12
ZN18C10008
NUT
2шт.
PX12B00072F1
ARM GROUP
1шт.
c1
PX12B01323F1
LINK
ASSY, BUCKET (B)
1шт.
c1-1
NSS
NOT SOLD SEPARAT
LINK, BUCKET
1шт.
c1-2
PX12B01151P1
BUSHING,40mm ID x 50mm OD x 50mm L
2шт.
c1-3
PX12B01246P1
BUSHING,40mm ID x 50mm OD x 32mm L
2шт.
c1-4
PW12B01208D2
COLLAR
1шт.
c2
PW12B01224P2
LINK
2шт.
c3
PW12B01250P2
PIN
OD 35 x 280mm Long -- (Secures with Roll Pin PX61B01091P1)
2шт.
PX61B01091P1
PIN,10mm OD x 58mm L
Roll (Used to secures Pin PW12B01250P2), Not Shown
2шт.
c4
PX12B01319P1
PIN
1шт.
c5
PW12B01311P1
PIN,40mm OD x 210mm L
1шт.
c6
ZS18C16030
SCREW,Hex, M16 x 30mm
CAP
2шт.
c7
ZW16H16000
WASHER
2шт.
c8
PW12B01216P1
WASHER
2шт.
c9
PN54D01001D3
SEAL,40mm ID x 50mm OD x 4mm Thk
10шт.
c11
ZG91S02000
LUBE NIPPLE,1/8" NPT x 1/8" NPT
5шт.
c12
PR12B01113P1
SHIM,0.5mm Thk
4шт.
c13
PR02B01123D1
SHIM,0.9mm Thk
4шт.
c14
ZG91U02000
LUBE NIPPLE
2шт.
Выбрано товаров: 46
