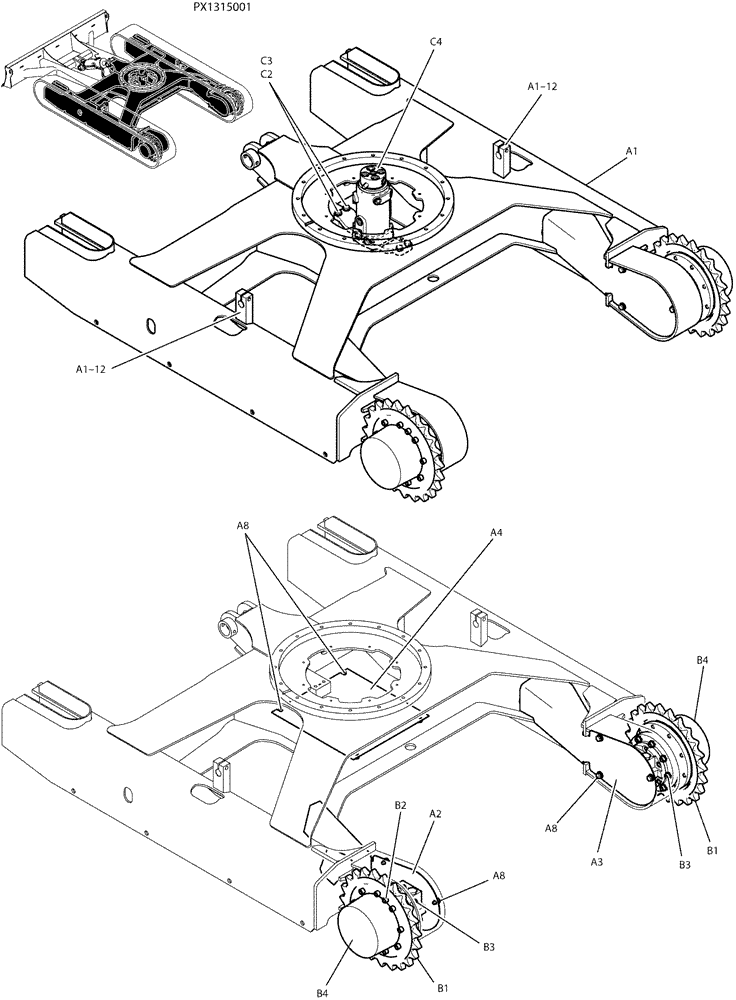

Запчасти Case CX36B (02-001) - LOW GROUP (39) - FRAMES AND BALLASTING

PX01F00008F1

LOW GROUP

1шт.

a1

PX02F00069P1

FRAME

LOW GROUP

1шт.

a1-12

PX07F01059P1

SUPPORT

1шт.

a2

PX01F01027P1

COVER

1шт.

a3

PX01F01028P1

COVER

1шт.

a4

PM01F01008P1

COVER

1шт.

a8

ZM73C10016

BOLT,M10x16mm - Course Thread

SEMS-BOLT

10шт.

PX53D00010F1

MOTOR INSTAL, PROPEL

1шт.

b1

PX51D01001P1

SPROCKET

SPROCKET

2шт.

b2

ZS18C12040

SCREW,Hex, M12 x 40mm

CAP

20шт.

b3

PV17M01004P1

SCREW

CAP

20шт.

b4

PX15V00025F1

HYDRAULIC MOTOR

2шт.

SEE (C.P.M)

1шт.

PW19H00014F2

JOINT INSTAL, SWIVEL

1шт.

c2

ZS18C12040

SCREW,Hex, M12 x 40mm

CAP

4шт.

c3

ZW16X12000

WASHER

4шт.

c4

PW55V00015F2

JOINT ASSY.

1шт.

SEE (C.P.M)

1шт.
