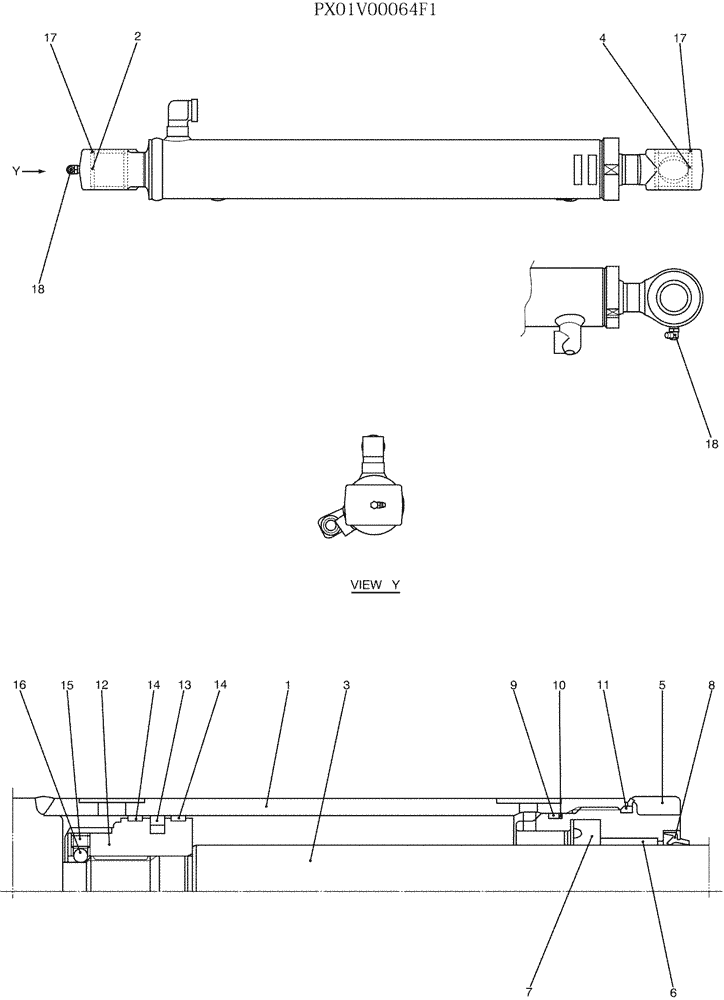

Запчасти Case CX36B (07-034) - CYLINDER ASSY, BUCKET (35) - HYDRAULIC SYSTEMS

PX01V00064F1

HYDRAULIC CYLINDER

CYLINDER ASSY, BUCKET

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER

1шт.

2

PV12B01186D1

BUSHING

1шт.

3

NSS

NOT SOLD SEPARAT

ROD, PISTON

1шт.

4

PX01V00041S004

BUSHING

1шт.

5

PX01V00041S005

CYLINDER HEAD

1шт.

6

PM01V00060S031

BUSHING

BUSHING

1шт.

7

2438U477S6

RING

1шт.

8

PH01V00004S006

WIPER

RING

1шт.

9

ZD12G06000

O-RING,59.40mm ID x 65.60mm OD x 3.10mm

1шт.

10

PW01V00046S008

BACK-UP RING,62mm ID x 68mm OD x 2.5mm Thk

1шт.

11

ZD12G06500

O-RING,64.40mm ID x 70.60mm OD x 3.10mm

1шт.

12

PX01V00041S012

PISTON

1шт.

13

2438U1289S16

RING,48mm ID x 58mm OD x 5mm Thk

SEAL

1шт.

14

PM01V00067S019

RING,51mm ID x 67mm OD x 3mm Thk

RING, SLIDE

2шт.

15

2438U1057S16

SET SCREW

SETSCREW

1шт.

16

2436U946S11

BALL

1шт.

17

PR01V00002S027

SEAL

DUST

4шт.

18

ZG91U02000

LUBE NIPPLE

2шт.

PX01V00064R100

REPAIR KIT

REPAIR KIT, CONSISTS OF REF. 1(1), 2(1), 17(2)

1шт.

PX01V00041R200

ROD

REPAIR KIT, CONSISTS OF REF. 3(1), 4(1), 17(2)

1шт.

PX01V00041R300

REPAIR KIT

CONSISTS OF REF. 7(1), 8(1), 9(1), 10(1), 11(1), 13(1), 14(2)

1шт.
