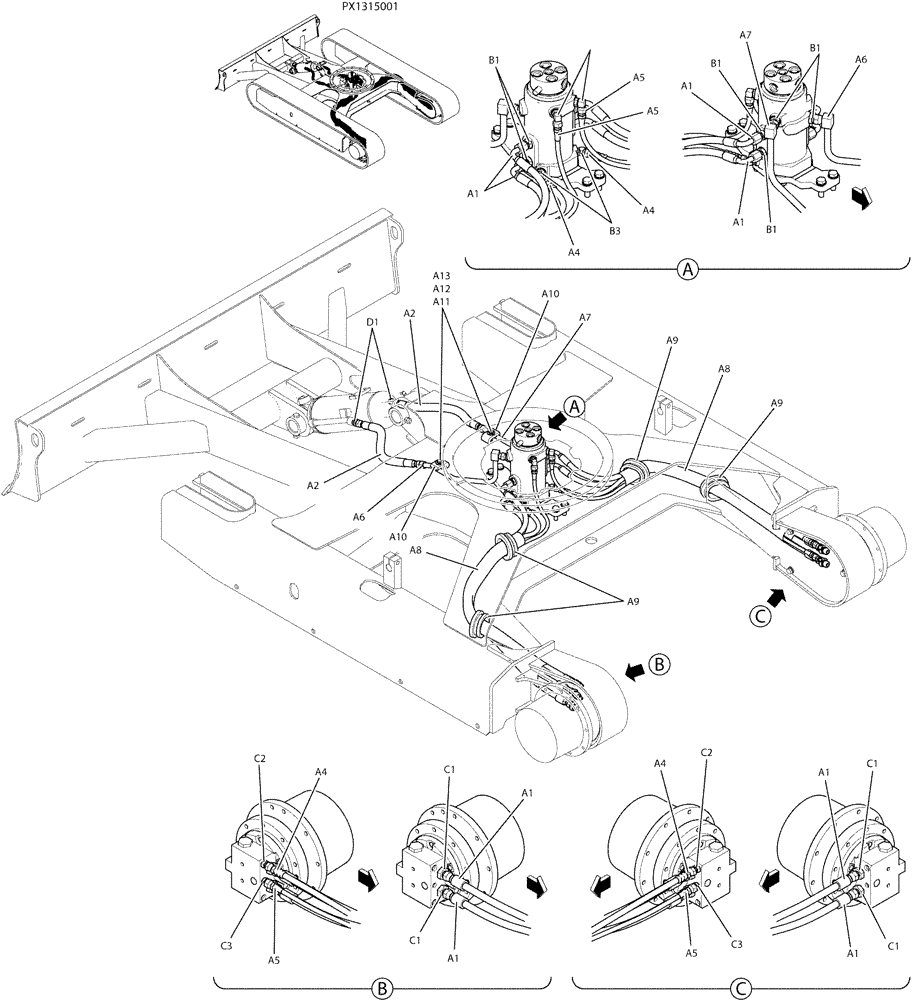

Запчасти Case CX36B (02-011) - HYD LINES, LOW (35) - HYDRAULIC SYSTEMS

PX02H00007F1

HYD LINES, LOW

1шт.

a1

PM02H01011D3

HOSE ASSY.

4шт.

a2

PM02H01012DA

HOSE,9.5mm ID x 380mm L

2шт.

a4

HX23L04120DX

HOSE ASSY.,6.3mm ID x 1200mm L

2шт.

a5

PW02H01014D2

HOSE ASSY.

2шт.

a6

PX02H01002P1

TUBE

1шт.

a7

PX02H01003P1

TUBE

1шт.

a8

PW01P01003DC

HOSE,45mm ID x 730mm L

2шт.

a9

PX02H01001P1

GROMMET

4шт.

a10

PW02F01049P1

CLAMP

2шт.

a11

ZS18C08035

SCREW,Hex, M8 x 35mm

CAP

2шт.

a12

PV01P01007P1

WASHER

2шт.

a13

ZW26X08000

LOCK WASHER

2шт.

PW19H00012F1

HYD LINES, SWIVEL

1шт.

b1

HH25S06006G1

HYD CONNECTOR

6шт.

b2

HH35S04004G1

90 ELBOW

2шт.

b3

HH45S04004G1

45 ELBOW

2шт.

PW12H00002F1

HYD LINES, PROPEL

1шт.

c1

HH25S06008G1

HYD CONNECTOR

4шт.

c2

HH25S04004G1

HYD CONNECTOR

2шт.

c3

HH25S04002G2

HYD CONNECTOR

2шт.

PW13H00001F1

HYD LINES, CYLINDER

1шт.

d1

HH25S06006G1

HYD CONNECTOR

2шт.
