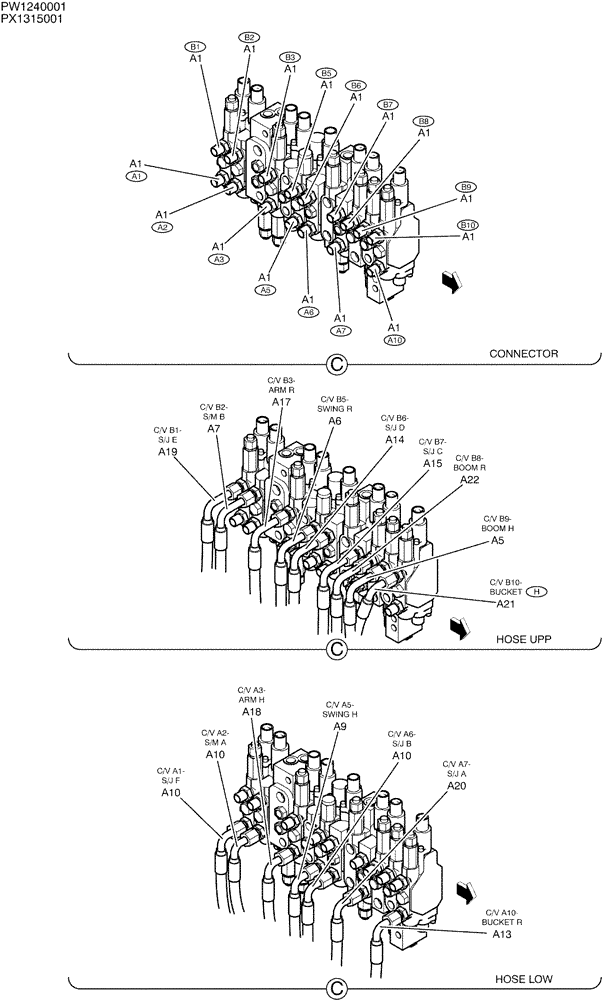

Запчасти Case CX36B (01-021[02]) - HYD LINES, UPP (35) - HYDRAULIC SYSTEMS

PW03H00035F1

HYD LINES, UPP

1шт.

a1

HH25S06006G1

HYD CONNECTOR

16шт.

a2

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

2шт.

a3

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

a5

PW03H01128D2

HOSE

1шт.

a6

PW03H01101D6

HOSE,9.5mm ID x 740mm L

1шт.

a7

PW03H01101D2

HOSE,9.5mm ID x 1050mm L

1шт.

a9

HX35L06054DY

HOSE,9.5mm ID x 540mm L

1шт.

a10

HX35L06094DY

HOSE,9.5mm ID x 940mm L

3шт.

a11

YN64H01068D6

RUBBER

1шт.

a13

PW03H01127D2

HOSE,9.5mm ID x 2120mm L

HOSE

1шт.

a14

PW03H01101D3

HOSE,9.5mm ID x 1000mm L

1шт.

a15

PW03H01101D4

HOSE,9.5mm ID x 960mm L

1шт.

a17

PW03H01128D1

HOSE

HOSE

1шт.

a18

PW03H01127D1

HOSE

HOSE

1шт.

a19

PW03H01101D7

HOSE,9.5mm ID x 1100mm L

1шт.

a20

HX35L06090DY

HOSE,9.5mm ID x 900mm L

1шт.

a21

PW03H01127D3

HOSE

HOSE

1шт.

a22

PW03H01128D3

HOSE

HOSE

1шт.

PW19H00019F1

HYD LINES, SWIVEL

1шт.

b1

HH25S04004G1

HYD CONNECTOR

1шт.

b2

HH45S06006G1

45 ELBOW

4шт.

b3

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

2шт.

b4

2444Z4101

HYD CONNECTOR

1шт.
