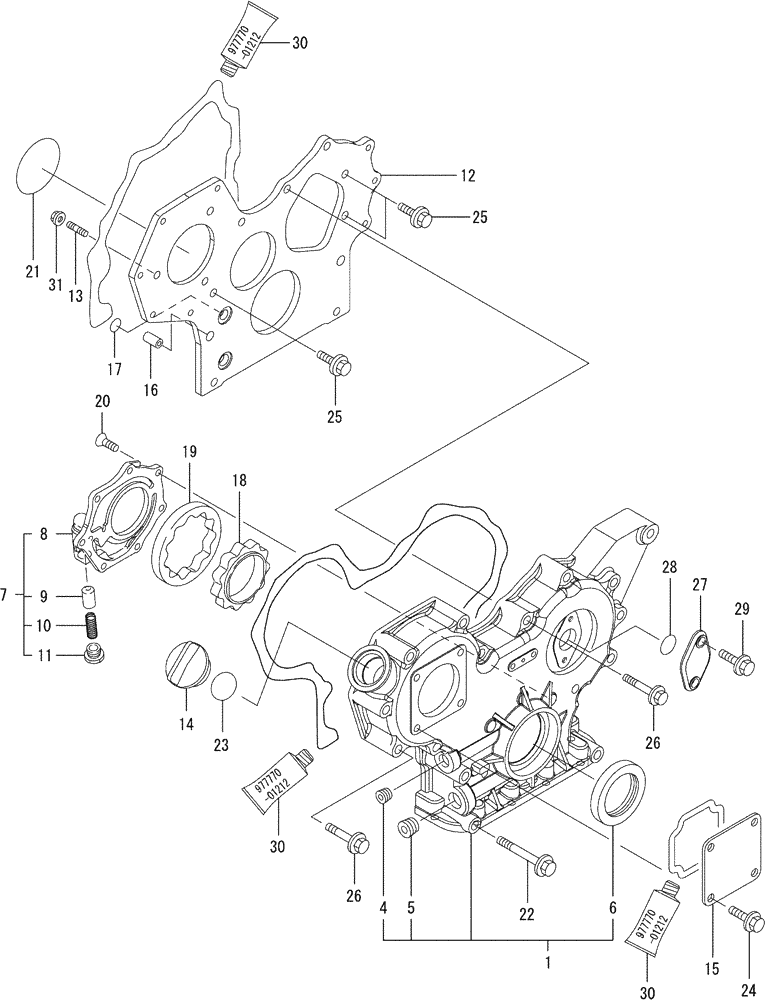

Запчасти Case CX36B (08-002) - GEAR HOUSING (10) - ENGINE

NSS

NOT SOLD SEPARAT

GEAR HOUSING

1шт.

1

VV72924001500

TRANSMISSION HOUSING

HOUSING ASSY, GEAR

1шт.

4

VV23876030000

PLUG

PLUG, PT 3/8, SCREW

1шт.

5

VV23876040000

PLUG

PLUG, PT 1/2

1шт.

6

VV12979501800

OIL SEAL

SEAL, OIL

1шт.

7

VV11980232100

COVER ASSY

COVER ASSY, PUMP

1шт.

8

VV11980232070

COVER

COVER, LUB. OIL PUMP

1шт.

9

VV12990032130

VALVE

VALVE, RELIEF

1шт.

10

VV12941832320

SPRING

SPRING

1шт.

11

VV12900132330

PLUG

PLUG

1шт.

12

VV11980201520

CASE

FRANGE, GEAR CASE

1шт.

13

VV11980201560

STUD

STUD, M8X25

3шт.

14

VV12416001751

CAP

COVER, FILLER

1шт.

15

VV12424001871

COVER

Hydraulic Oil Pump

1шт.

16

VV12979501950

PIPE

PIPE, KNOCK L=18

2шт.

17

VV11960932040

O-RING

O-RING, P16

4шт.

18

VV11980232111

ROTOR

ROTOR, INNER

1шт.

19

VV11980232120

ROTOR

ROTOR, OUTER

1шт.

20

VV11980232130

SCREW

SCREW, M6X16

7шт.

21

VV12185051960

O-RING

O-RING, F.I. PUMP

1шт.

22

VV12900191841

BOLT

BOLT, M8X85

3шт.

23

VV24311000320

O-RING

O-RING, 1A P-32.0

1шт.

24

VV26106080162

BOLT,M8 x 16mm

BOLT, M8X16 PLATED

4шт.

25

VV26106080162

BOLT,M8 x 16mm

BOLT, M8X16 PLATED

3шт.

26

VV26106080552

BOLT,M8 x 55mm

BOLT, M8X55 PLATED

12шт.

27

VV12102301550

COVER

COVER, BLIND

1шт.

28

VV24341000240

O-RING

O-RING, 1A S-24.0

1шт.

29

VV26106060162

BOLT,M6 x 16mm

BOLT, M6X16 PLATED

2шт.

30

VV97777001212

GASKET

GASKET, LIQUID

1шт.

31

VV12961277260

NUT

NUT, GENERATOR

3шт.

(1) OPTIONAL PART.

1шт.
