Запчасти Case CX36B (01-015[02]) - CONTROL ASSY, ENGINE (10) - ENGINE

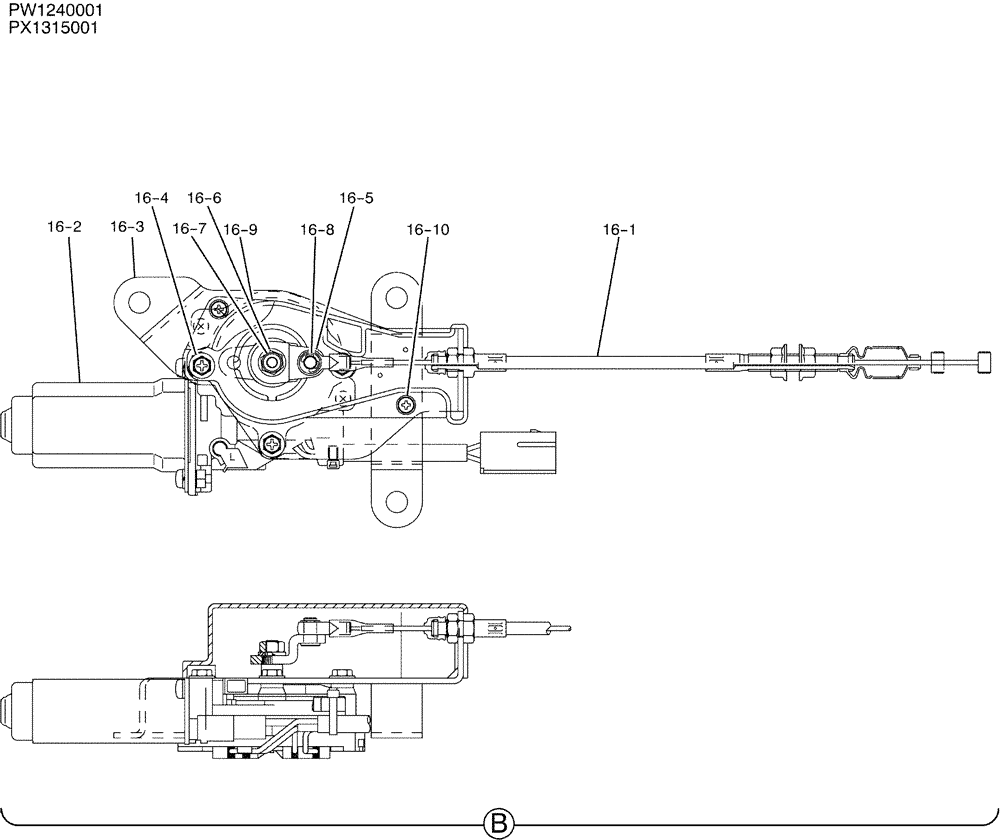

Схема запчастей Case CX36B - (01-015[02]) - CONTROL ASSY, ENGINE (10) - ENGINE
16-3
16-6
16-1
16-2
16-9
16-8
16-4
16-7
16-10
16-5

Артикул

Название

Примечание

Количество

16-1

PW20S00012S001

CABLE

1шт.

16-2

PM20S00009S002

GOVERNOR

1шт.

16-3

PW20S00012S003

BRACKET

1шт.

16-4

PM20S00009S004

SCREW

3шт.

16-5

PM20S00009S005

LEVER ASSY.

1шт.

16-6

PM20S00009S006

LOCK WASHER

1шт.

16-7

PM20S00009S007

NUT

1шт.

16-8

PM20S00009S008

RING

1шт.

16-9

PM20S00009S009

COVER

1шт.

16-10

PM20S00009S010

SCREW

2шт.

Выбрано товаров: 10
